Brother MFC-J6510DW

3-105
Confidential
3.9.13 CR Encoder Strip and its Guard Film

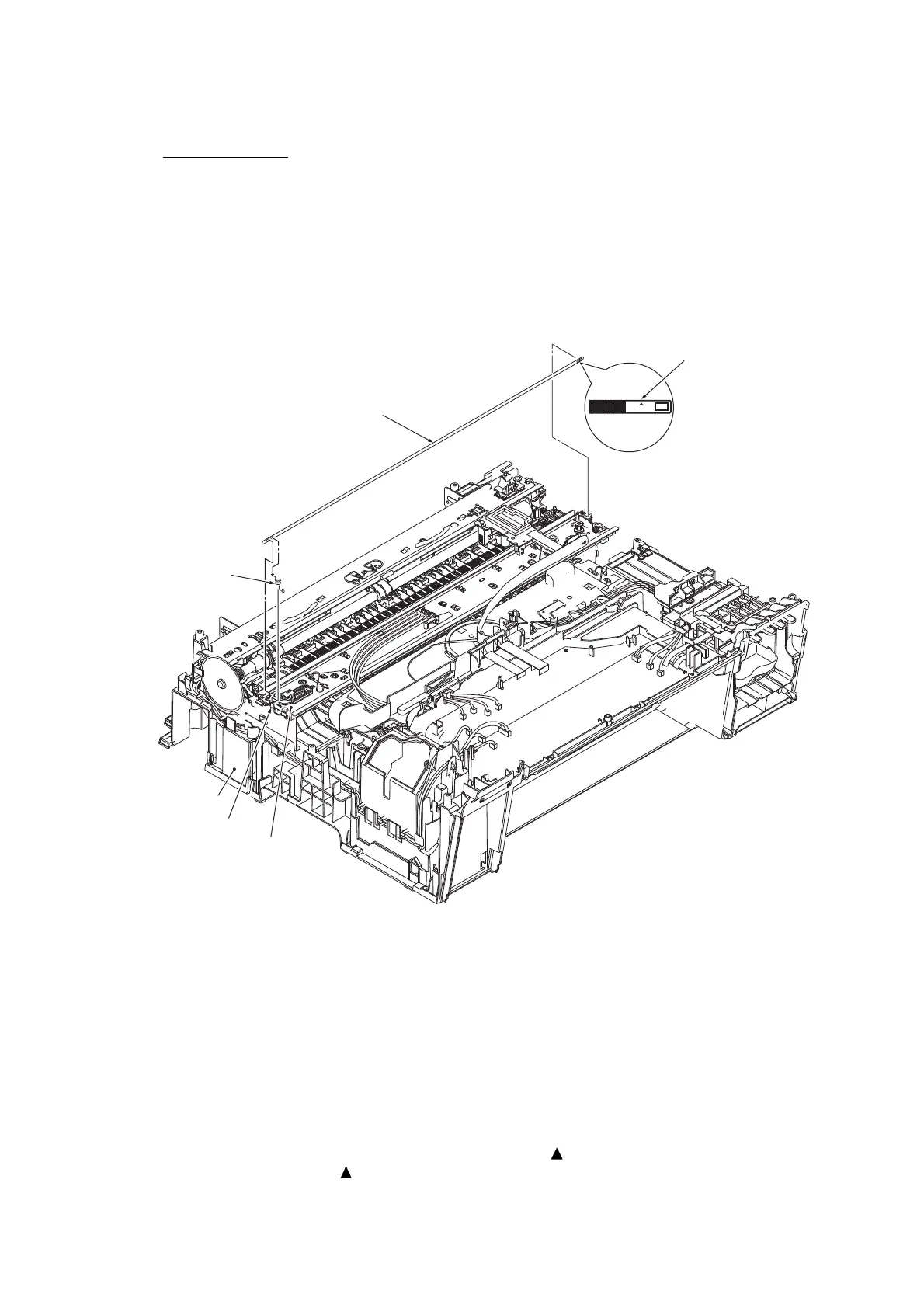

CR encoder strip
(1) At the left end of the CR support chassis, push the rear end of the encoder strip spring
inwards, unhook the left end of the CR encoder strip from the spring, and then unhook the
right end from the CR support chassis.
(2) Slide the CR encoder strip to the left, align the rectangular hole in the left end of the strip
with the boss of the strip support and take the strip off.
Note: Take care not to scratch or damage the encoder strip. If it is stained or damaged,
replace it.
Assembling Note: Set the CR encoder strip so that the
-marked end is to the right (carriage
motor side) and the mark points upwards as shown above.
(3_072)
CR support chassis
CR encoder strip
Encoder strip spring
Lower cover
Strip support
This should point up.
