Note for models with a power inlet having a built-in fuse
If the fuse built in the power inlet has blown, the power supply PCB could also be
damaged. Be sure to replace the whole power supply PCB ASSY, not just the fuse. Never
use any substitute or short-circuit the fuse terminals with conductors. Using a power inlet
with an unauthorized fuse will cause a fire or accident.
(3_070)

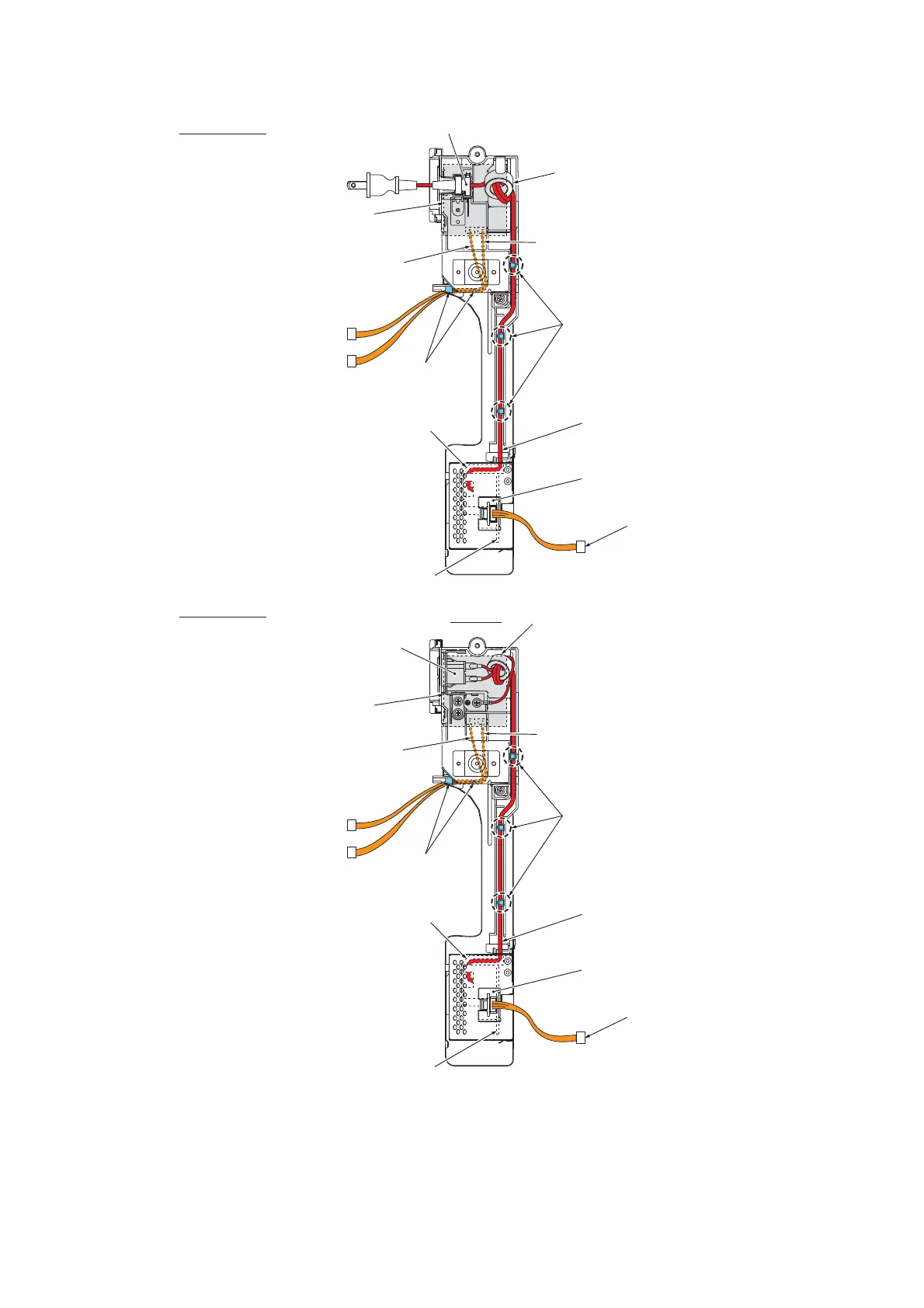

Power cord bush
MJ PCB
Main-MJ (EXT) harness
(black)
Main-MJ (LINE) harness
(yellow)
Cable
guides
PS PCB insulator
Power supply PCB
Power supply harness
Power cord
Cable guides
Ferrite core
Power harness holder
For 100 V series
(3_070_1)
MJ PCB
Cable
guides
PS PCB insulator
Power supply PCB
Power supply harness
Power cord
Power harness holder
Cable guides
Ferrite core
Top view
For 200 V series
Power inlet
Main-MJ (EXT) harness
(black)
Main-MJ (LINE) harness
(yellow)
