3.9.14 Carriage PCB ASSY, Ink Refill ASSY and Ink Cartridge Detection Sensor
PCB
Carriage PCB ASSY (Carriage PCB with head flat cables)
(1) Remove the carriage PCB ASSY from the head/carriage unit, by performing steps (7)
through (11) in Section 3.9.2 "Head/Carriage Unit."
(2) Release the head flat cables from the cable guides on the tube support plate and take them
out together with the flat core.
Note: When replacing the carriage PCB ASSY, remove the flat core from the old head flat
cables and set it to the new ones.

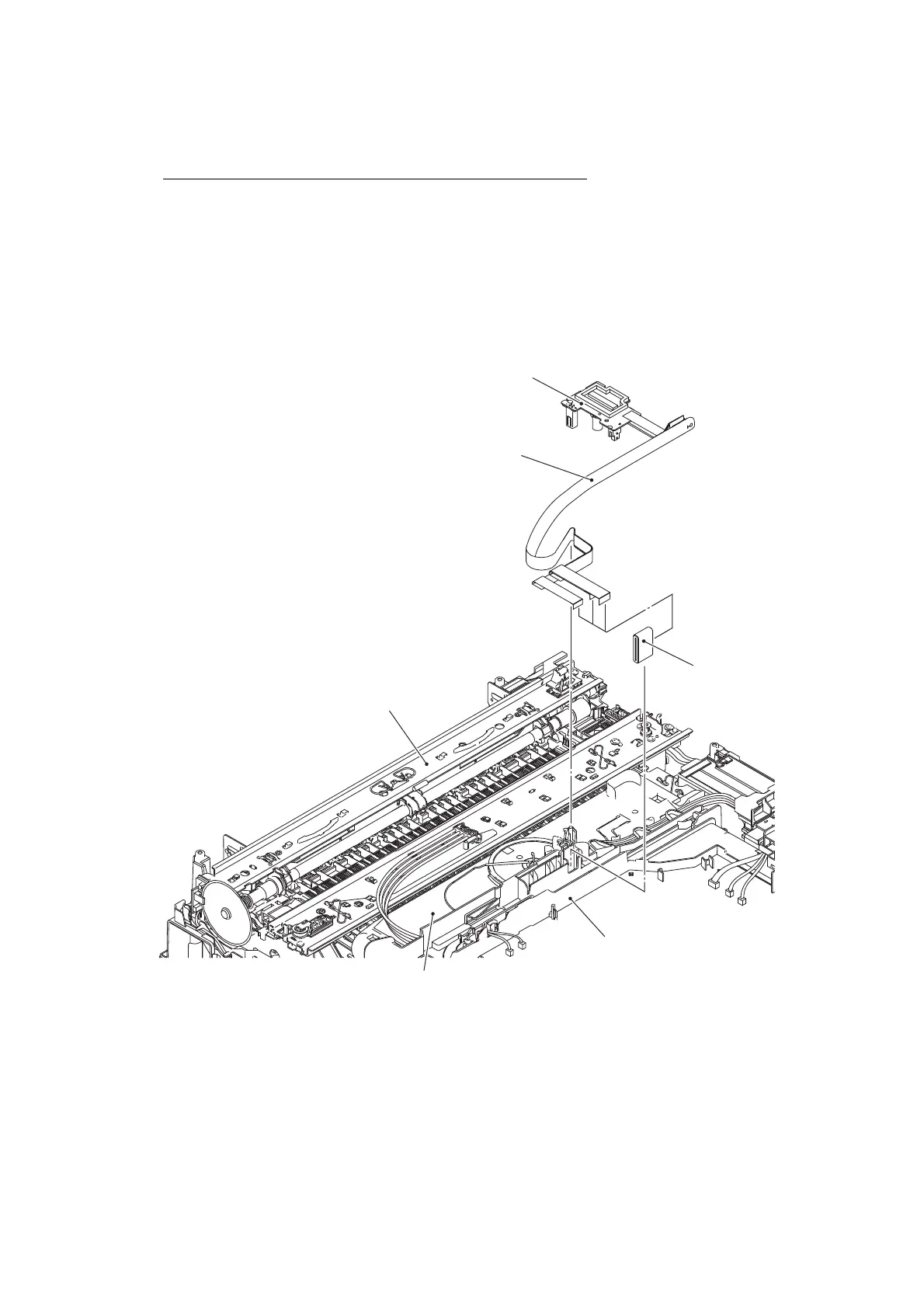

(3_074)
Lower cover
Carriage PCB ASSY
Head flat cables
CR guide rail
Tube support plate
Flat core
