Brother MFC-J6510DW

3-108
Confidential

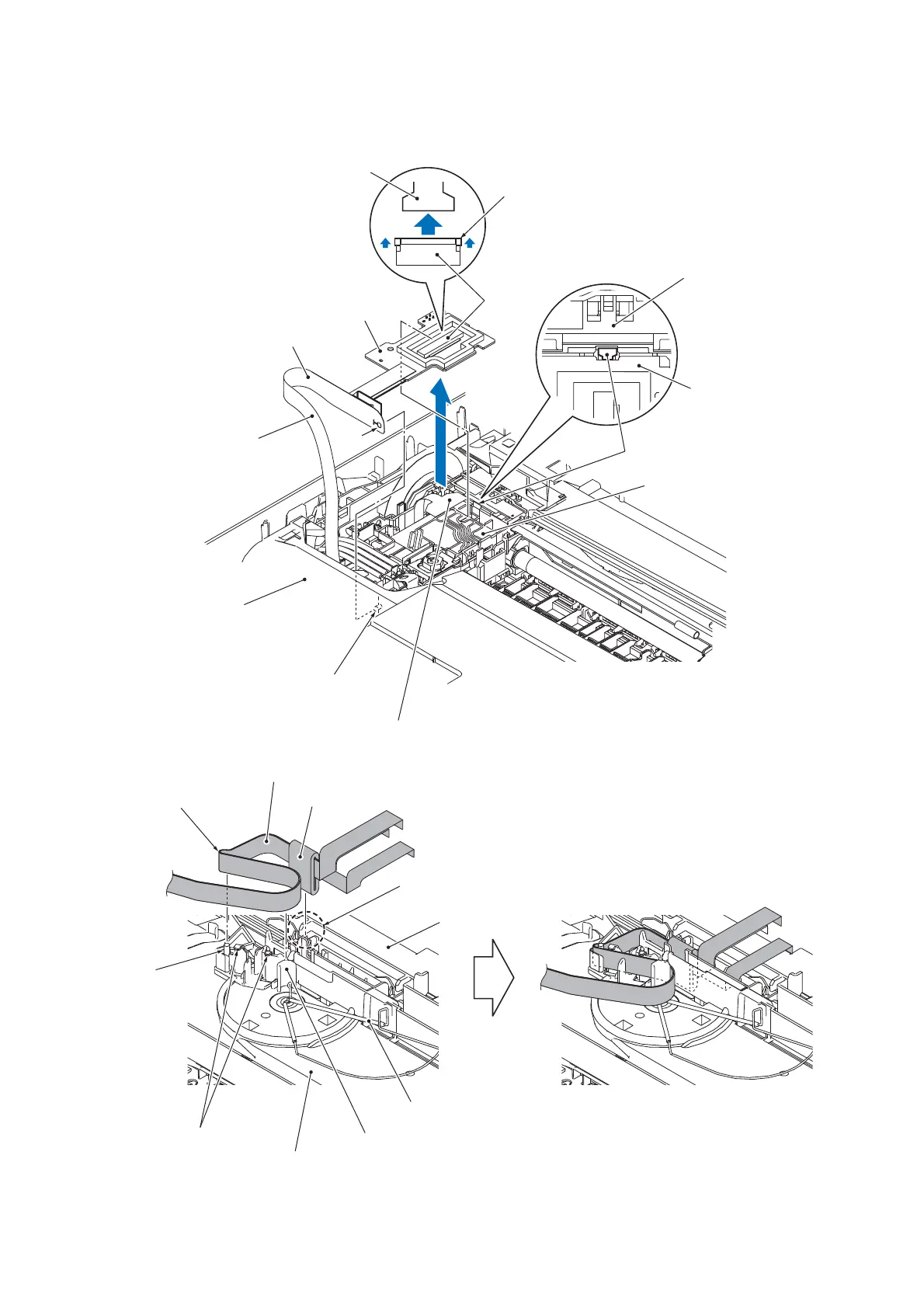

Assembling Note: When mounting the carriage PCB ASSY, route the head flat cables as shown
below.
(3_008)
Carriage PCB ASSY
Carriage PCB ASSY
Hole
Head flat cables
Upper cover
Boss
Carriage-head flat cable
Head/carriage unit
Head/carriage unit
Lock spring
(Rear)
Connector
Film
Pull here to unlock.
Carriage-head flat cable
(3_079)
Head flat cables
Flat core
Folded section
Boss
Cable guides
(Rear)
Tube support plate
Tube/cable guide
Tube support wire
Lower cover
Pocket
