3.9.7 Disassembly of Control Panel ASSY
(The control panel ASSY contains the scanner cover sensor actuator.)
Models without touch panel

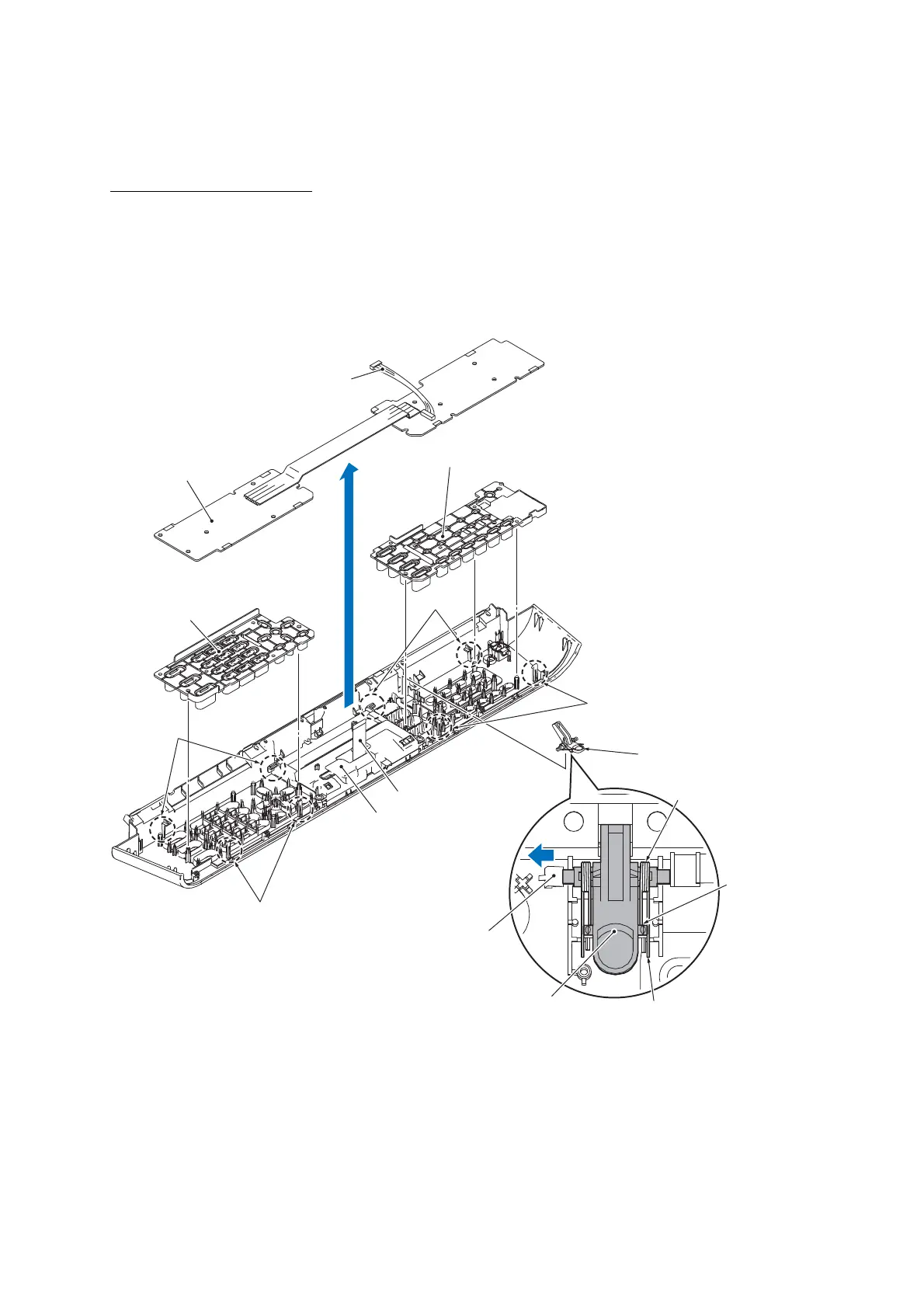

(1) Place the control panel ASSY upside down.
(2) Release the four latches and remove the control panel PCB ASSY (consisting of two
PCBs).
(3) Remove the two rubber keypads.
(4) Unlatch the scanner cover sensor actuator and remove it together with its spring.
Assembling Notes:
• After mounting the scanner cover sensor actuator, check that the actuator springs back if
pressed with a finger.
• When mounting the control panel PCB ASSY, first fit it below the four tabs on the control
panel base and then secure it with the four latches (see above). Make sure that the cable
linking the two PCBs is threaded through the cable guide.
(3_049_1)
Panel-main harness
Control panel PCB
ASSY
Rubber keypad
Tabs
Latches
Latches
Tabs
Control panel base
LCD flat cable
(Rear)
Rubber keypad
Scanner cover
sensor actuator
Actuator
spring
Scanner cover
sensor actuator
Latch
Spring's long end
on the control panel base
Spring's short
end on the boss
of the sensor
actuator
