3-55
Confidential
3.9.4 Manual Feed Slot Cover and ADF & Document Cover ASSY

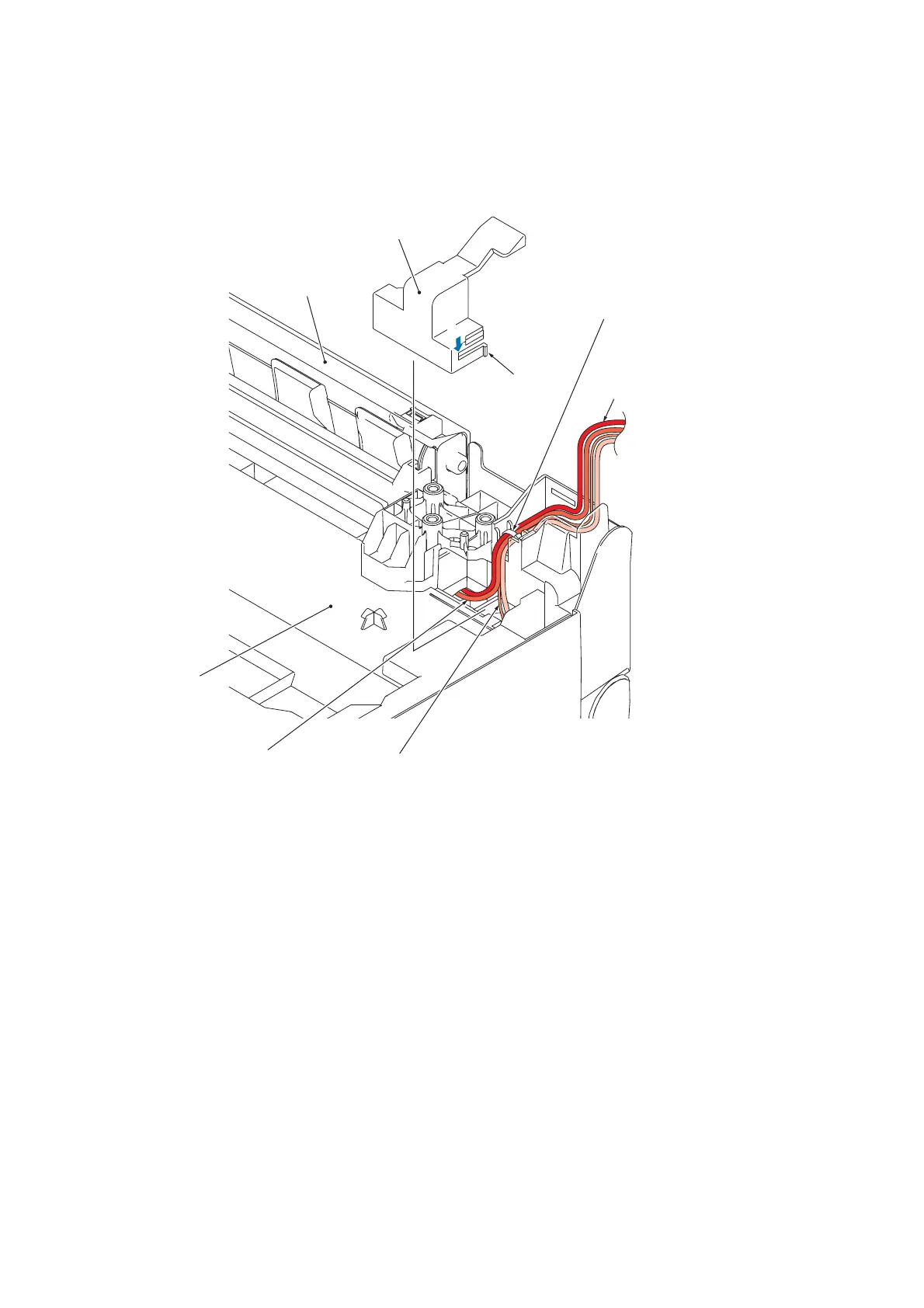

(1) Insert the tip of a flat screwdriver into the slit "a" provided in the harness support and twist
it to release the harness support from the scanner cover.
(3_022)
CIS motor harness
and grounding wire
"a"
Harness support
Scanner cover
(placed upside
down)
ADF motor harness
and grounding wire
Cable tie
Latch
Manual feed
slot cover
Bundle of the document detection/
width & scanning position (first side)
sensors harness, document scanning
position sensor harness (second side)*
and the ADF cover sensor harness
To Next Page
