Brother MFC-J6510DW

3-117
Confidential
3.9.17 Engine Unit, Flashing Box and Ink Cartridge Cover Switch
During disassembly jobs, except when removing the ink refill ASSY or engine unit (including
the maintenance unit), leave the head/carriage unit in the machine.
Before removing the head/carriage unit, ink refill ASSY or engine unit, you need to remove all
four ink cartridges and set the protective part instead (see page 3-36).
(1) If the MJ/PS shield unit has not been removed, you need to remove screws "c" and "d"
shown on page 3-100.

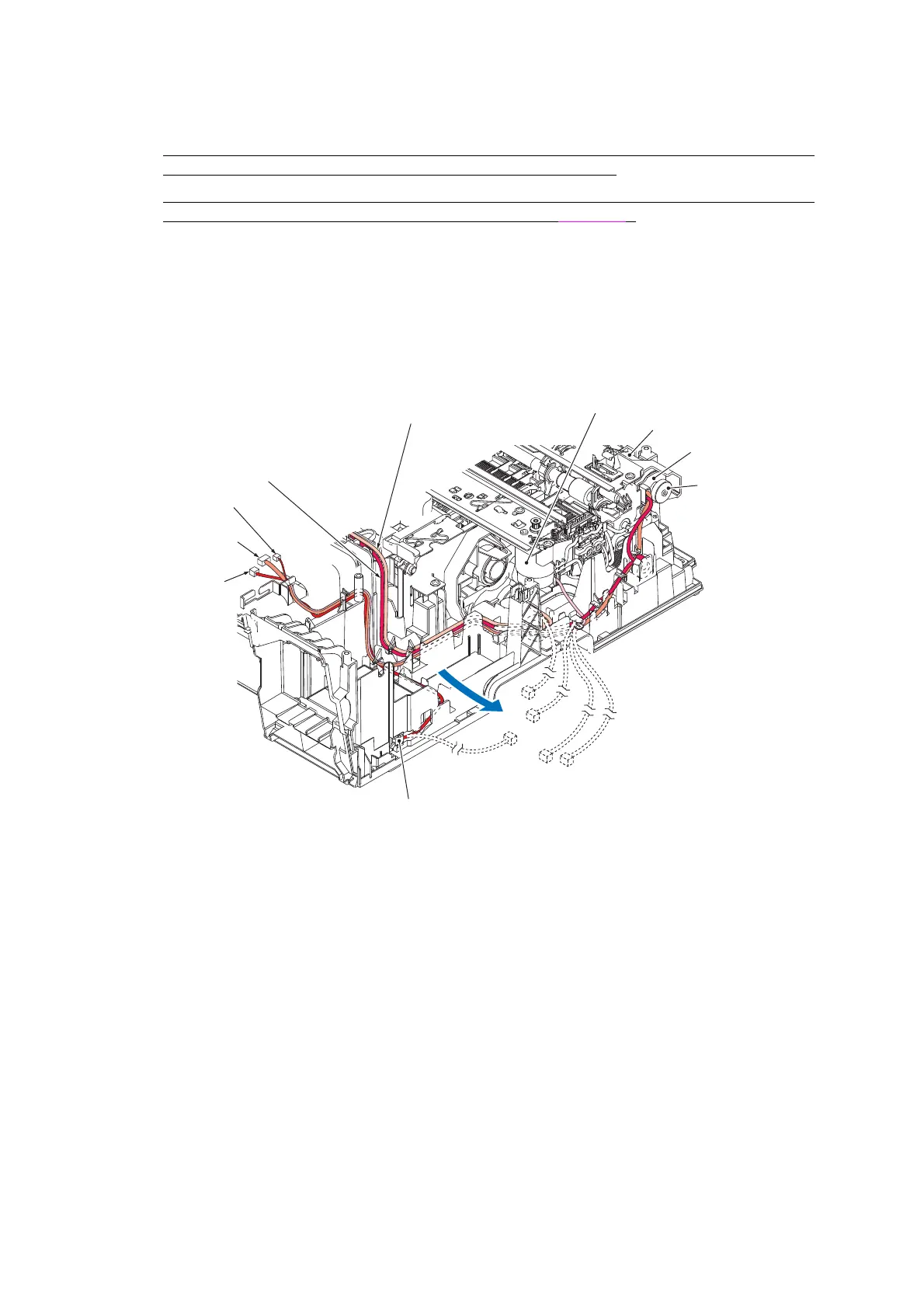

(2) On the right end of the lower cover, release the five harnesses (carriage motor harness, ASF
motor harness, ASF encoder harness, purge cam switch harness and ink cartridge cover
switch harness) from the cable guides.
Carriage motor
(3_087)
Carriage motor harness
ASF motor harness
Purge cam switch
harness
ASF encoder harness
Ink cartridge cover
switch harness
(Ink cartridge cover switch)
(Right)
ASF encoder disk
ASF motor/encoder
PCB
ASF motor
