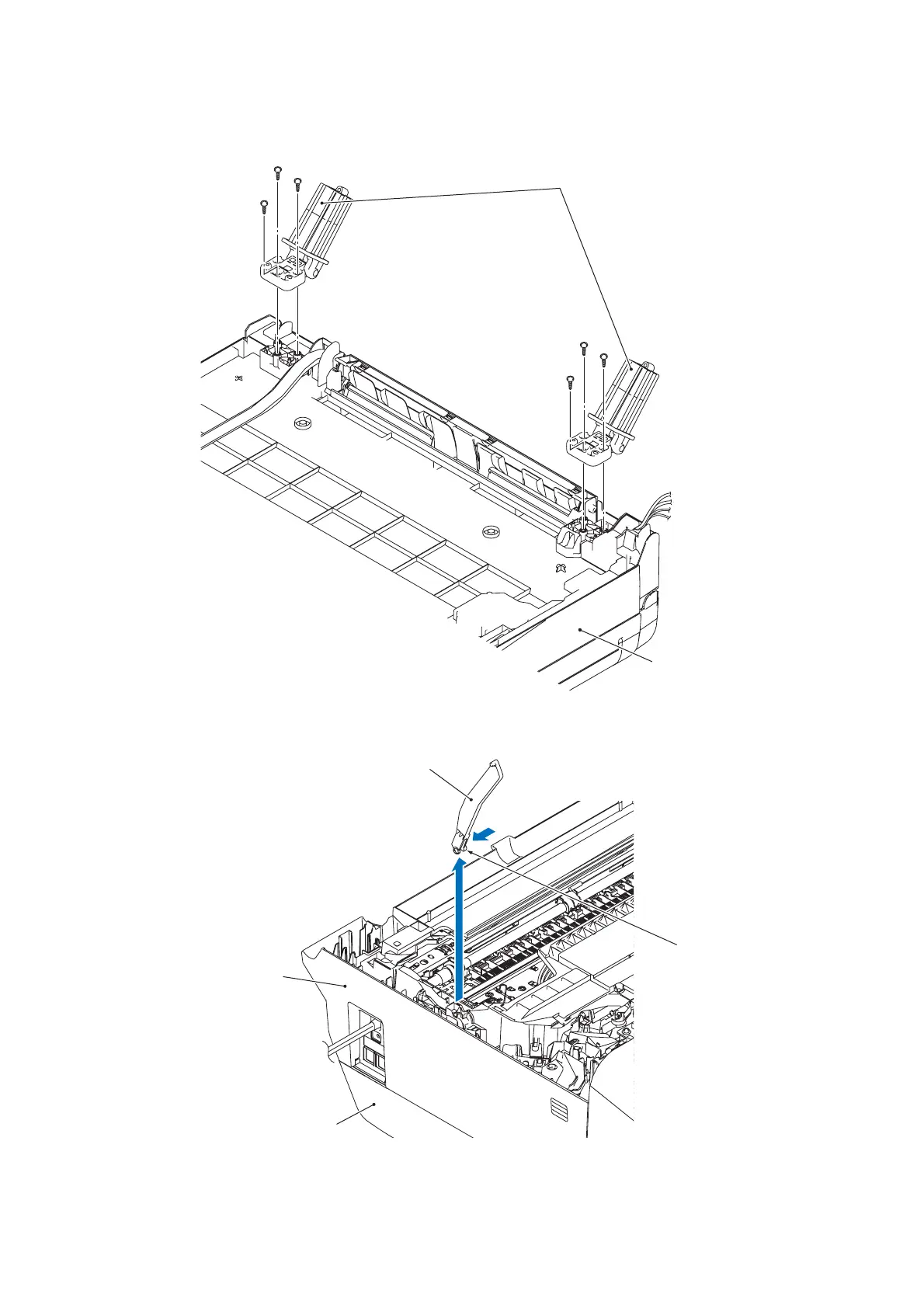

(9) Remove the three screws from each of the scanner hinges and take those hinges off the

scanner cover.

(10)Slightly tilt the scanner cover support towards you and unlock it as shown below.

(3_020_1)

Taptite, bind B

M4x12

Scanner cover

(Scanner unit)

Scanner hinges

(3_047)

LT cover

Scanner cover support

Upper cover

Lock
