(7) At the rear of the machine, remove the two screws that secure the two scanner hinges.
(8) Open the scanner cover fully
and pull it upward and out of the machine.
Note: Pulling up the scanner cover without fully opening it opens the scanner hinges
suddenly and unexpectedly with great force. It is DANGEROUS!
Hinweis: Wird die Scannerabdeckung nach oben gezogen, ohne sie zuvor vollständig
geöffnet zu haben, schnellen die Scannerscharniere plötzlich und unerwartet mit großer
Kraft nach oben. Dies ist GEFÄHRLICH!
*For duplex scanning models
Assembling Note: If you replace the scanner cover, acquire the white level data and set the CIS
scanner area (Function code 55), referring to Chapter 5, Section 5.1.4.15.
(3_020)

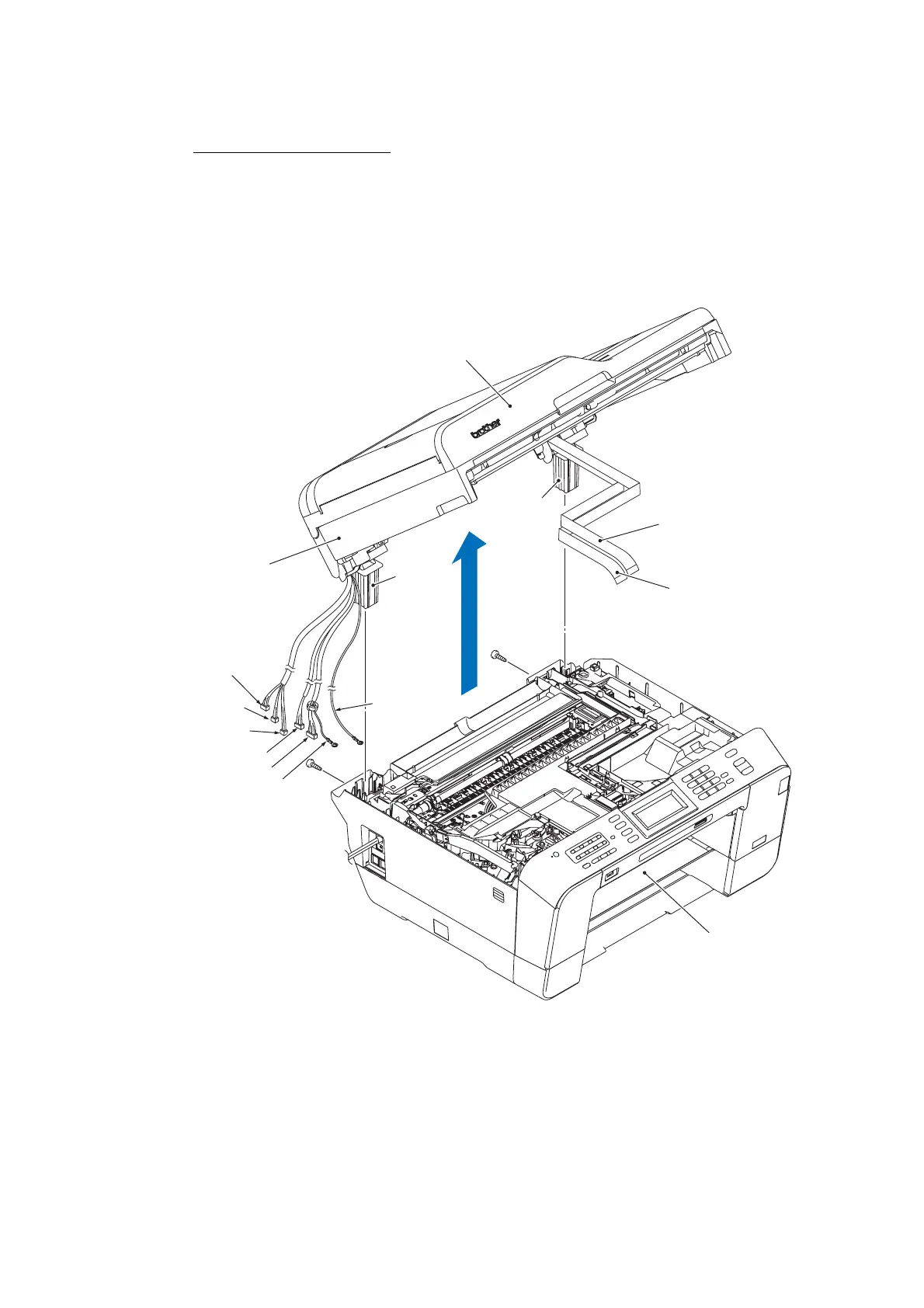

ADF & document cover ASSY
Scanner cover
(Scanner unit)
Scanner
hinge
CIS motor harness
ADF motor harness
Grounding wire
(for ADF drive unit)
Grounding wire
(for CIS motor)
Taptite, bind B
M4x12 (black)
Lower cover
Scanner
hinge
ADF cover sensor
harness
CIS flat cable (white) for
second side scanning*
CIS flat cable (black)
for first side scanning
Document scanning
p
osition sensor harness
(second side)*
Document detection/
width & scanning position
(first side) sensors harness
