Brother MFC-J6510DW

3-52
Confidential
(6) Release the harnesses and grounding wires from the cable guides provided at the left end of
the upper cover.

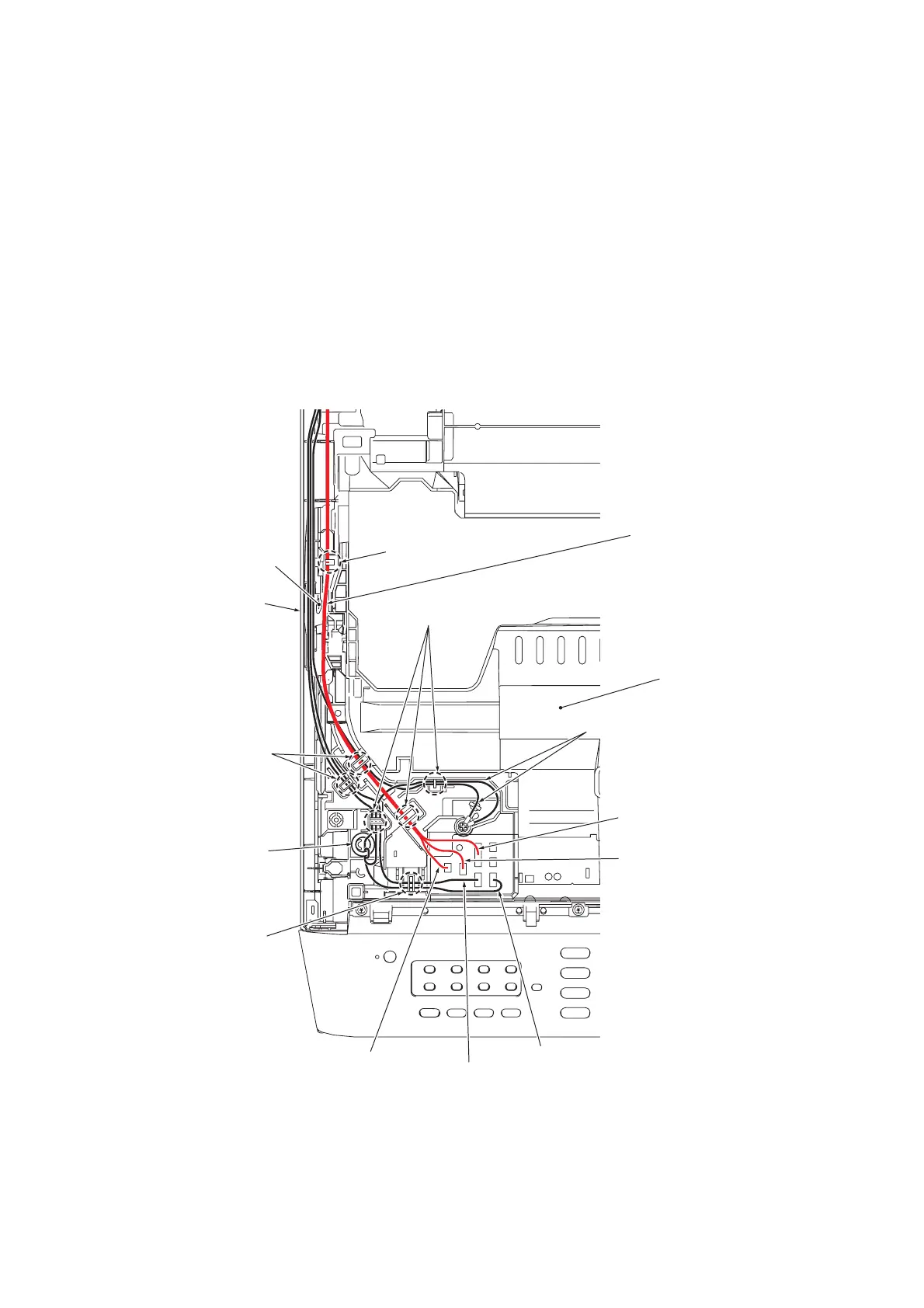

Assembling Note: Route the harnesses and grounding wires as shown below.
(3_021)
Route the bundle of
the ADF motor harness
and its grounding wire,
the CIS motor harness,
and the loose grounding
w
ire on this left side.
Cable guide
Cable guides
Cable guides
Ferrite core
Cable guide
ADF cover sensor harness
CIS motor harness
ADF motor harness
* For duplex scanning models
Document scanning position
sensor harness (second side)*
Document detection/width &
scanning position (first side)
sensors harness
Grounding wires
Route the bundle of
the document detection/
width & scanning position
(first side) sensors harness,
the document scanning position
sensor harness (second side)*,
and the ADF cover sensor
harness on this right side.
Upper cover
Boss
