Brother MFC-J6510DW

3-51
Confidential
MFC-J6510DW/MFC-J6710DW MFC-J6910DW
*1 For models destined for countries except Japan
*2 For Japanese models

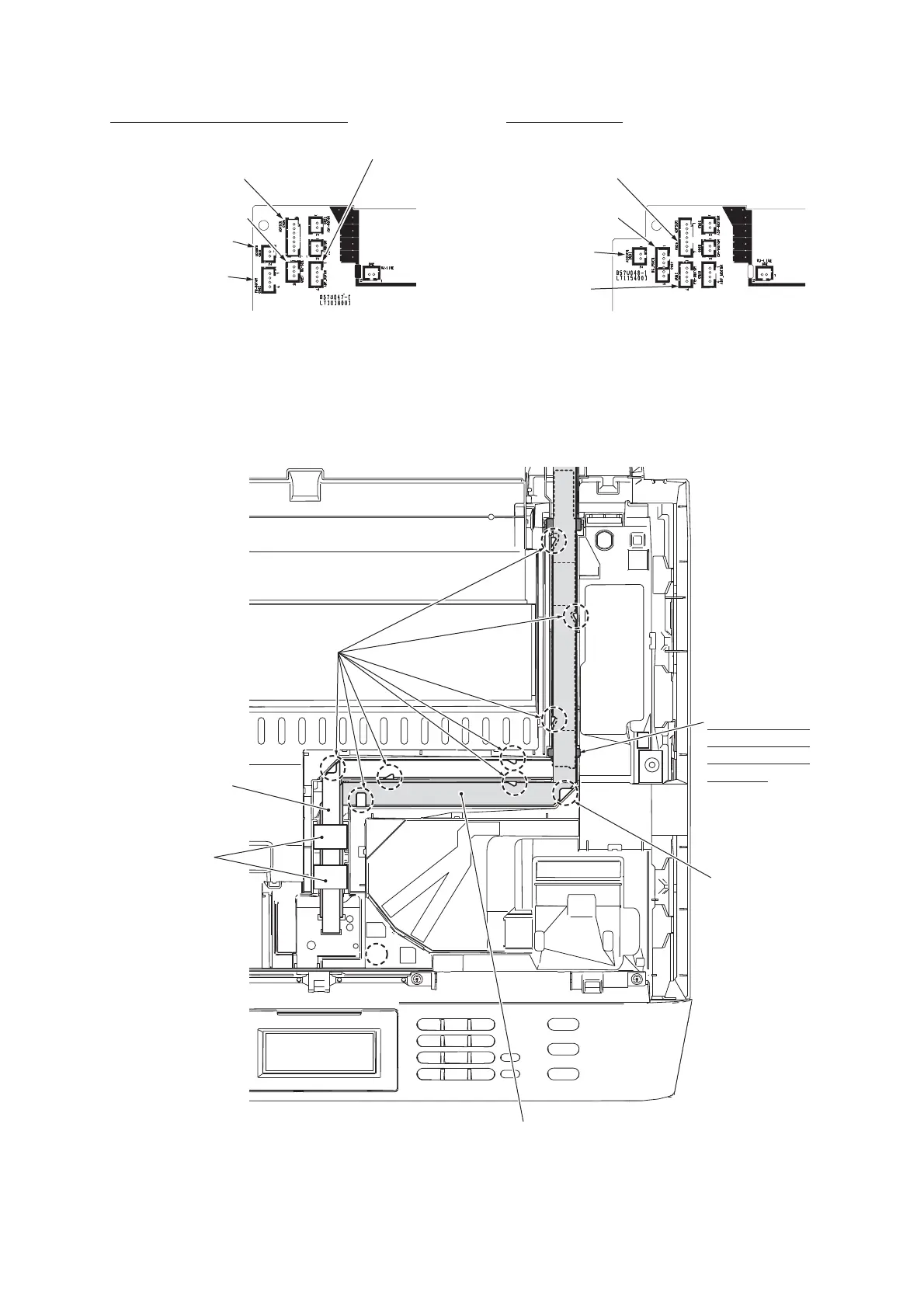

Assembling Note: Route the white CIS flat cable (for second side scanning)* and the black CIS
flat cable (for first side scanning) as shown below. Be sure to sandwich the flat cable support
between those cables; that is, mount the white CIS flat cable, flat cable support, and black CIS
flat cable in this order.
*For duplex scanning models
(ADF motor harness)
(4-wire)
(CIS motor harness)
(4-wire)
(Document width
sensor harness for B4)*
2
(ADF cover
switch harness)
(2-wire)
Main PCB Main PCB
(Document detection/width &
scanning position (first side) sensors harness)
(7-wire)
(ADF cover
switch harness)
(2-wire)
(CIS motor harness)
(4-wire)
(Document detection/width &
scanning position (first side) sensors harness)
(7-wire)
(Document scanning position
sensor harness (second side)*
(3-wire*
1
, 6-wire*
2
)
(3_021_1)
Cable guides
CIS flat cable
(white) for
second side
scanning*
Flat cores
CIS flat cable (black)
for first side scanning
Cable guide
Flat cable support
to be sandwiched
between the CIS
flat cables
