Brother MFC-J6510DW

3-16
Confidential
*For duplex scanning models
3

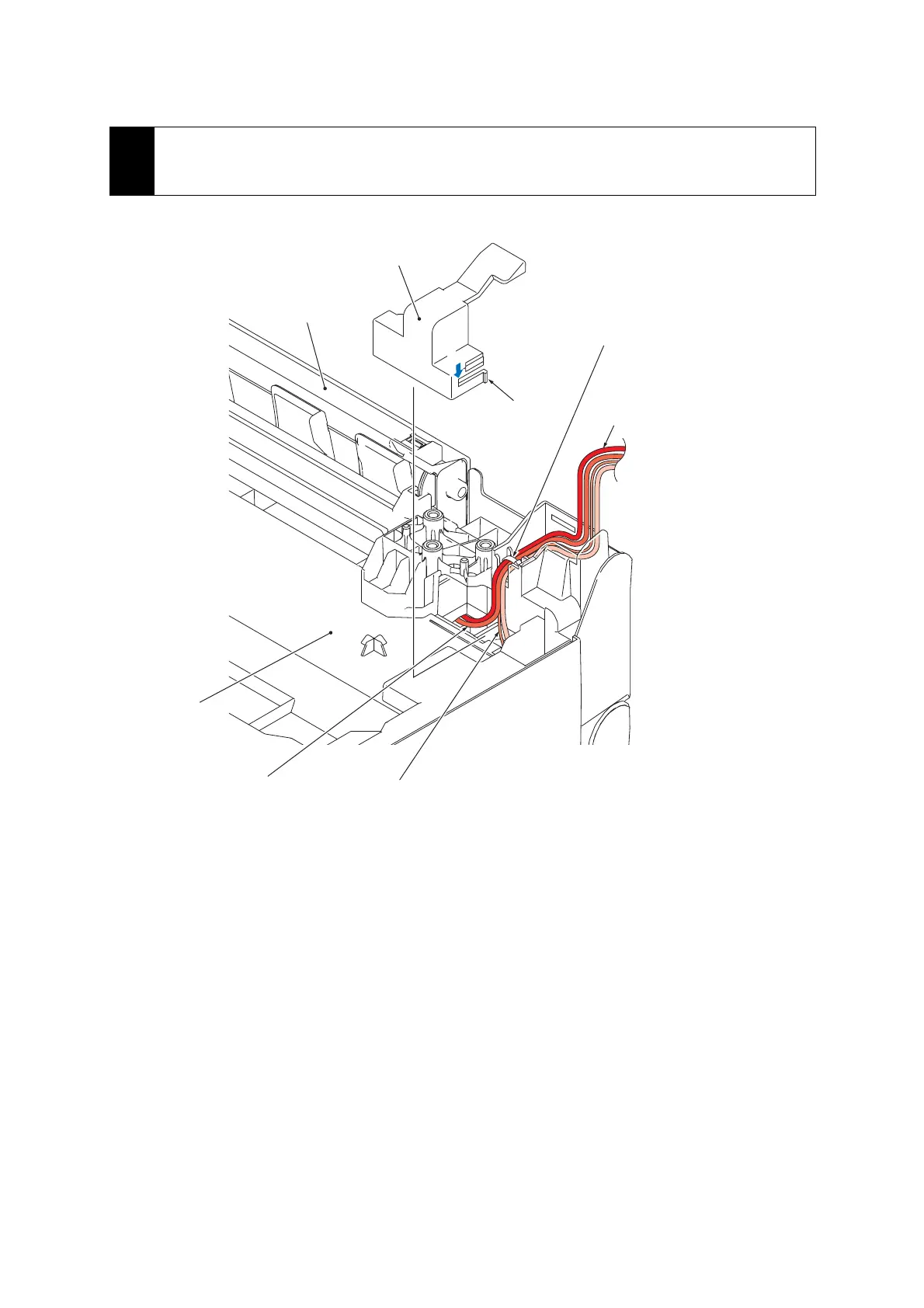

Underside of the scanner cover (scanner unit): ADF motor harness, CIS motor harness, Document
detection/width & scanning position (first side) sensors harness, Document scanning position sensor
harness (second side)* and ADF cover switch harness
(3_022)
CIS motor harness
and grounding wire
"a"
Harness support
Scanner cover
(placed upside
down)
ADF motor harness
and grounding wire
Cable tie
Latch
Manual feed
slot cover
Bundle of the document detection/
width & scanning position (first side)
sensors harness, document scanning
position sensor harness (second side)*,
and the ADF cover sensor harness
