Brother MFC-J6510DW

3-18
Confidential
*For duplex scanning models
5

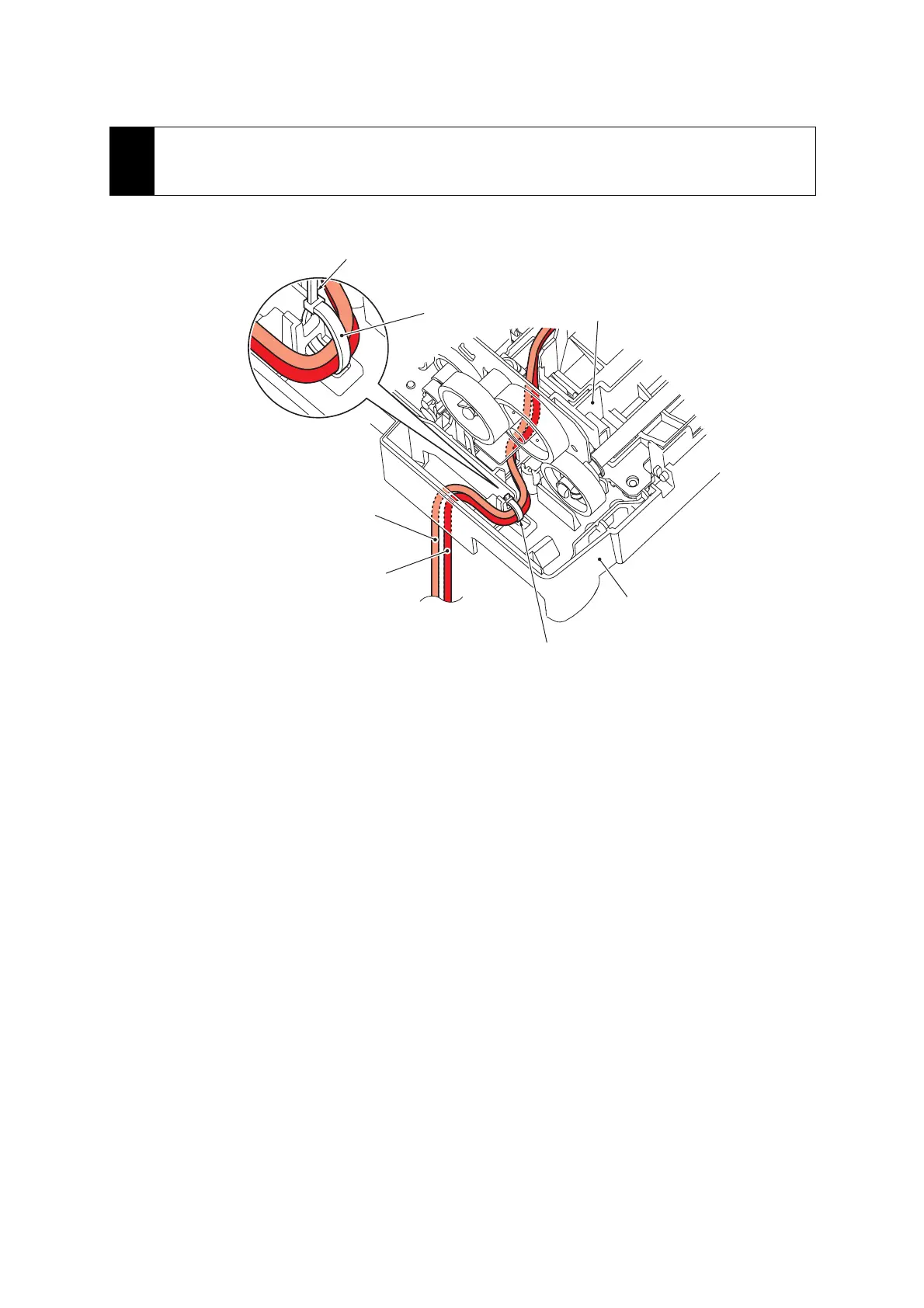

Lower ADF chute: ADF motor harness, Document detection/width & scanning position (first side)
sensors harness, Document scanning position sensor harness (second side)* and ADF cover switch
harness
(3_046)
Cut off the excess of the cable tie with nippers.
Cable tie
Bundle of the ADF motor harness
and grounding wire
Bundle of the document detection/
w
idth & scanning position (first side)
sensors harness, the document scanning
p
osition sensor harness (second side)*,
and the ADF cover sensor harness
Document cover
Lower ADF chute
Cable tie
