Brother MFC-J6510DW

3-38
Confidential
(4) Unplug the power cord from the electrical outlet.

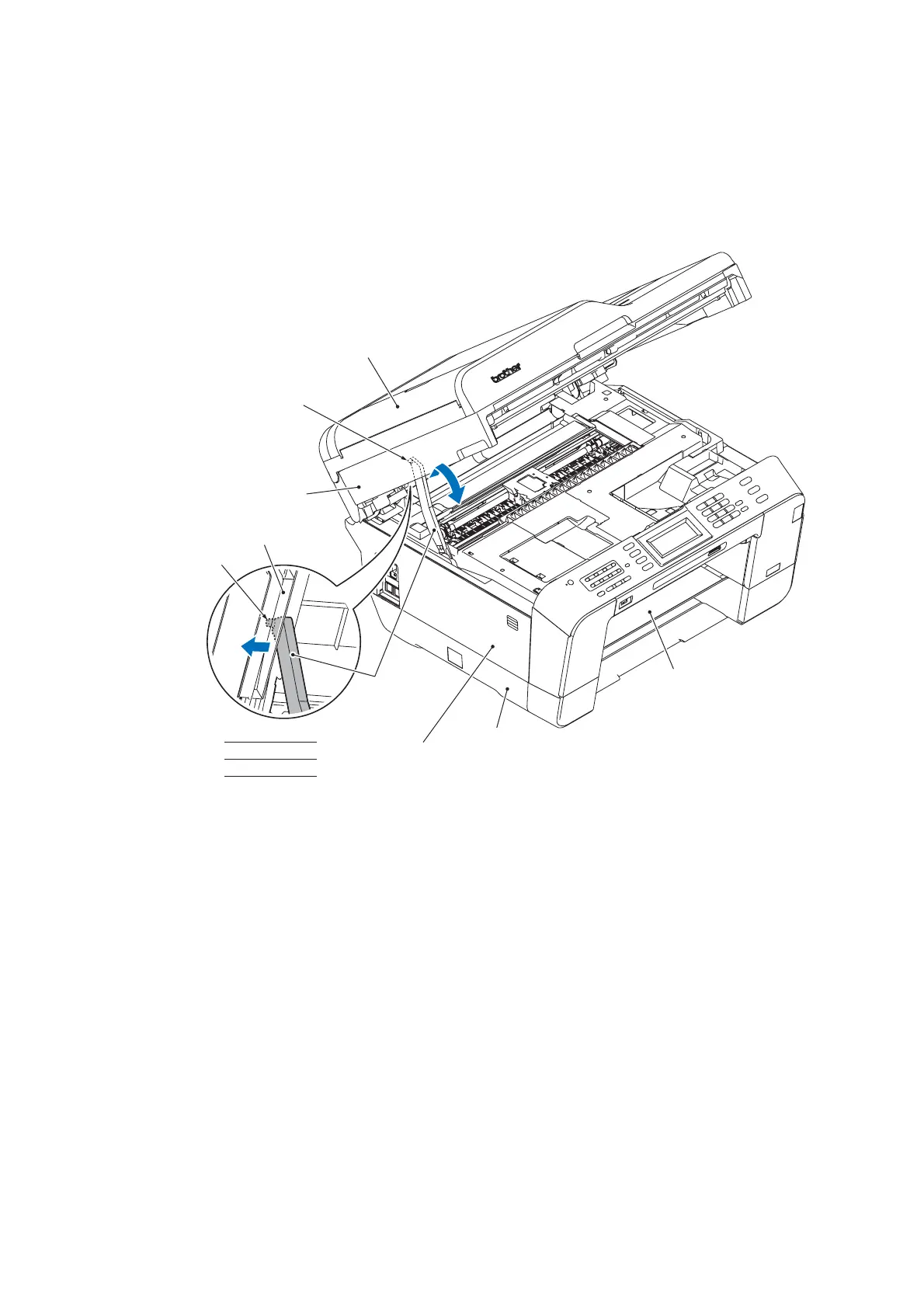

(5) Slightly close the scanner cover (scanner unit) so that the scanner cover support comes to
be almost upright. As shown below, press the rib of the section outwards in which the top
of the scanner cover support is fitted in order to widen the section, and pull out the boss
provided on the top left of the support to the right and towards you.
Assembling Note: When setting the top of the scanner cover support into place, press the rib
provided on the underside of the scanner cover outwards as shown above.
(3_004)
Boss
Boss
Upper cover
A
DF & document cover ASSY
Scanner cover
(Scanner unit)
Scanner cover
support
Lower cover
LT cover
(For models with paper tray #2)
Fitting the boss
while pressing
the rib outwards
Rib
