(5) Remove the two screws from the rear of the ADF & document cover ASSY.
(6) Open the ADF & document cover ASSY fully
.
Note: Lifting up the ASSY without fully opening it in step (7) opens the hinge arm L
suddenly and unexpectedly with great force. It is DANGEROUS!
Hinweis: Das Anheben der Baugruppe, ohne sie zuvor vollständig geöffnet zu haben, führt
in Schritt (7) dazu, dass der Scharnierarm L plötzlich und unerwartet mit großer Kraft nach
oben schnellt. Dies ist GEFÄHRLICH!

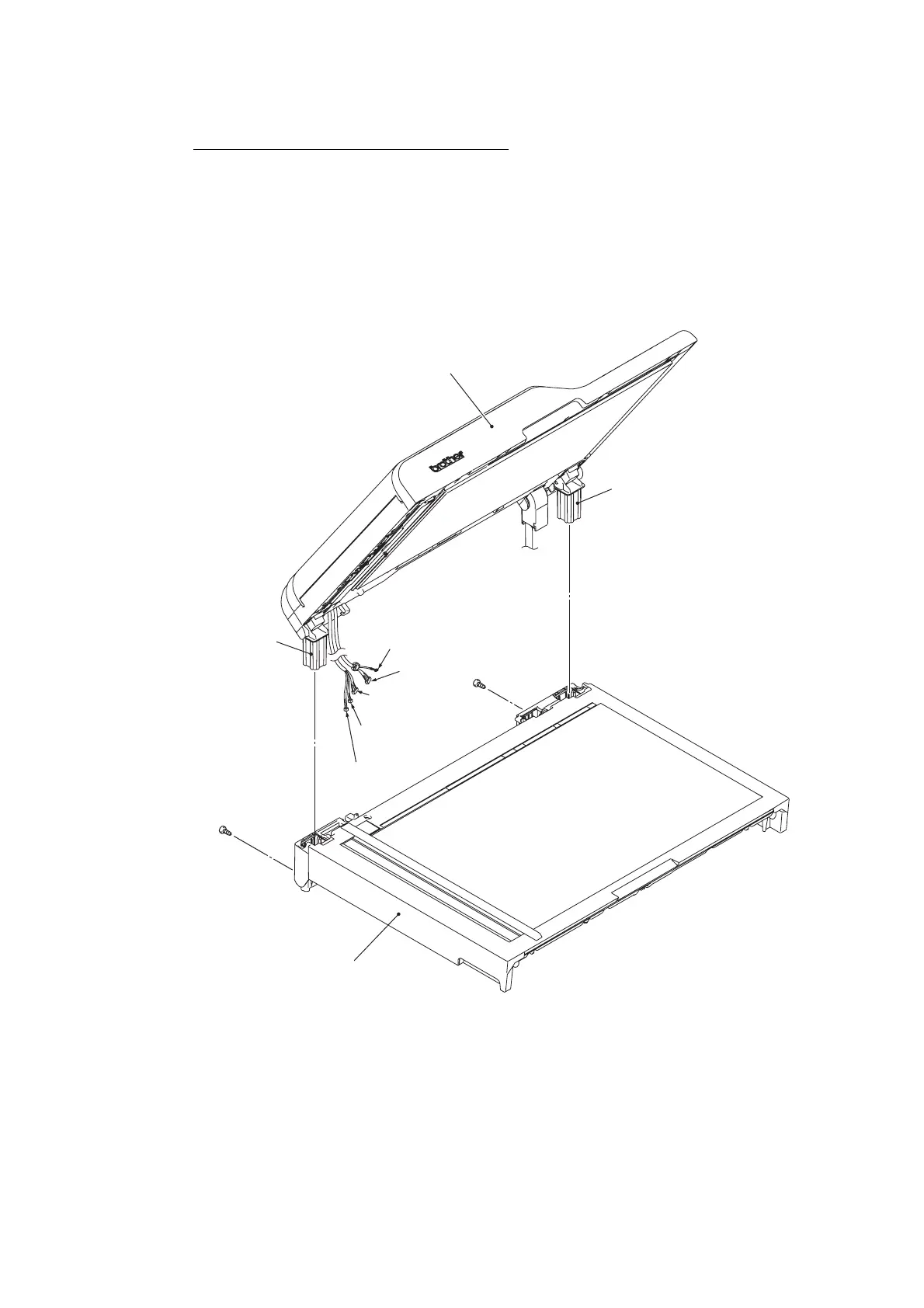

(7) Lift up the ADF & document cover ASSY to separate it from the scanner cover.
(3_024)
ADF & document cover ASSY
Document cover hinge
Document cover hinge
Grounding wire
ADF motor harness
Scanner cover (Scanner unit)
Document detection/
width & scanning position
(first side) sensors harness
ADF cover
sensor
harness
Document scanning
position sensor harness
(second side)*
* For duplex scanning models
Taptite, bind B
M4x12 M9
To Next Page
