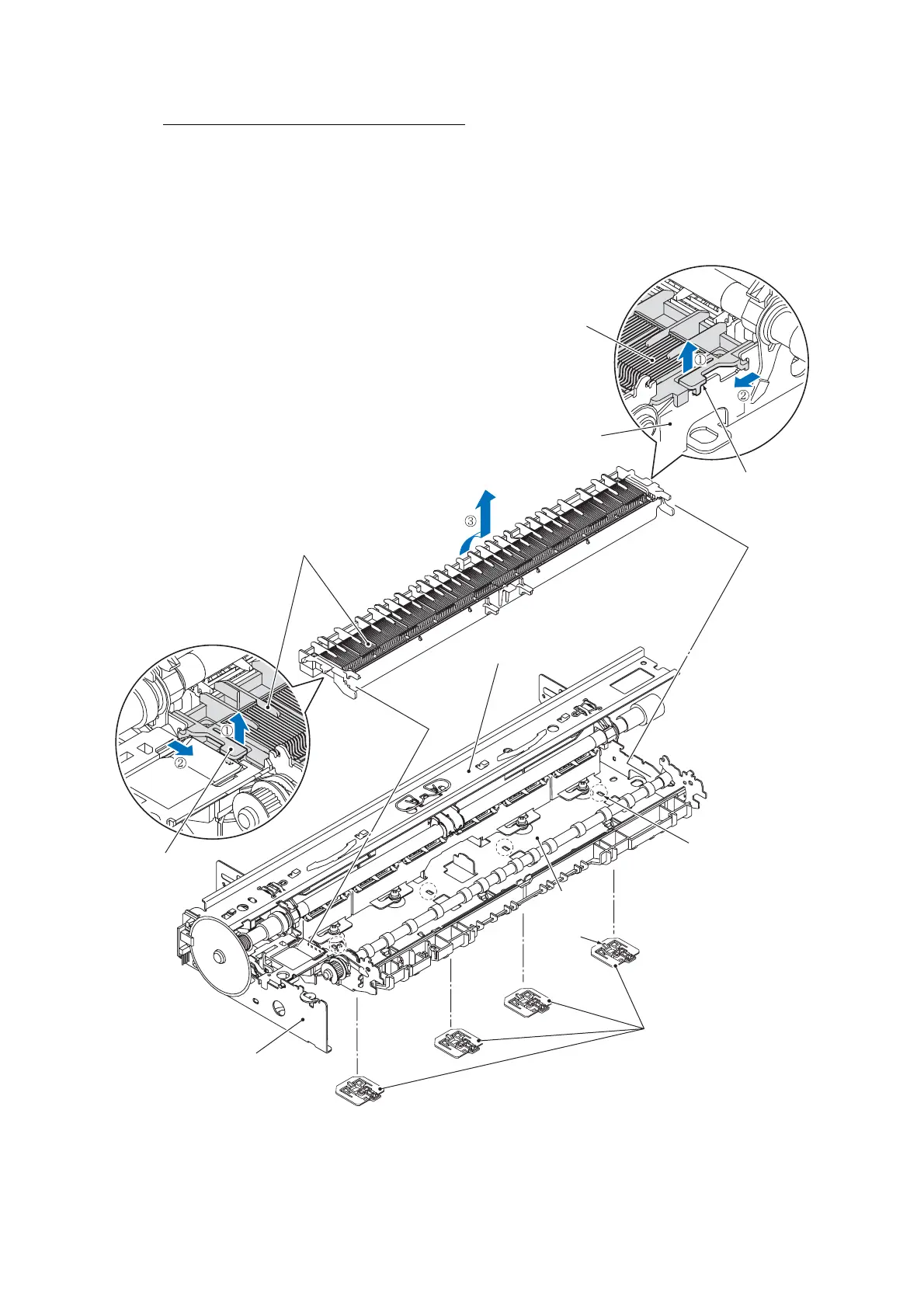

Platen and DX chute roller holder ASSYs
(15)At the right and left ends of the platen, lightly pull up the lock arms to release their bosses
(c), slightly slide the platen towards you (d), turn it towards you and lift it up (e).
(16)At each of the four DX chute roller holder ASSYs, press down its boss which is fitted in the
hole provided in the engine chassis and then slide the holder ASSY to the rear to detach it.
(3_099)
Platen
Platen
Lock arm
of platen
PF motor frame
Engine
unit
CR guide rail
Lock arm
of platen
Engine chassis
Hole
Boss
DX chute roller holder
ASSYs
