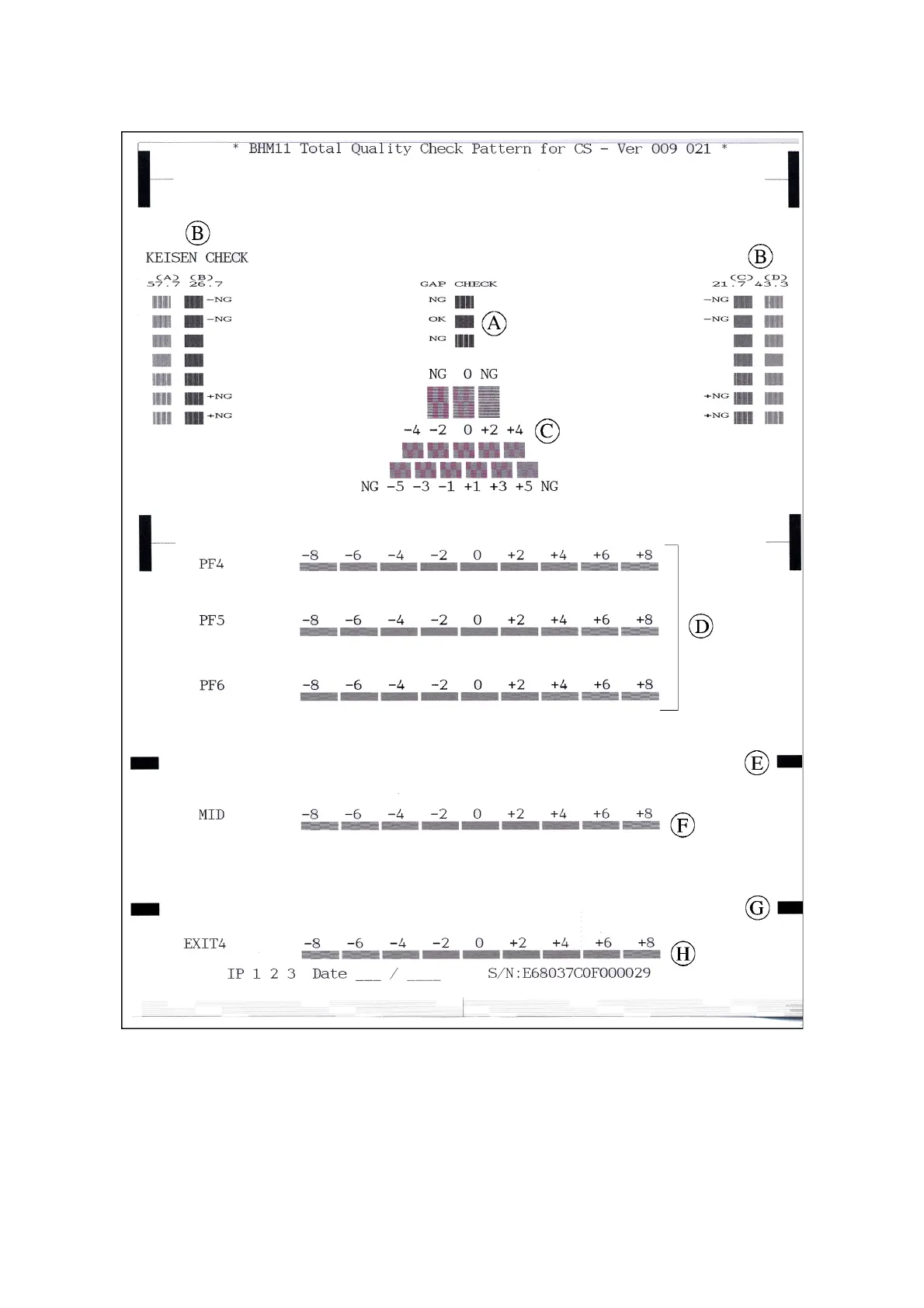

Total Quality Check Pattern
A: Platen height adjustment
B: Adjustment of vertical print lines
C: Inclination adjustment of the head/carriage unit
D: Paper feed roller adjustment
E: Margin adjustment for borderless printing (600 dpi)
F: Intermediate roller adjustment
G: Margin adjustment for borderless printing (1,200 dpi)
H: Paper ejection roller adjustment
To Next Page
