Brother MFC-J6520DW

To Next Page

To Previous Page

3-9

Confidential

 CR frame (Rear surface)

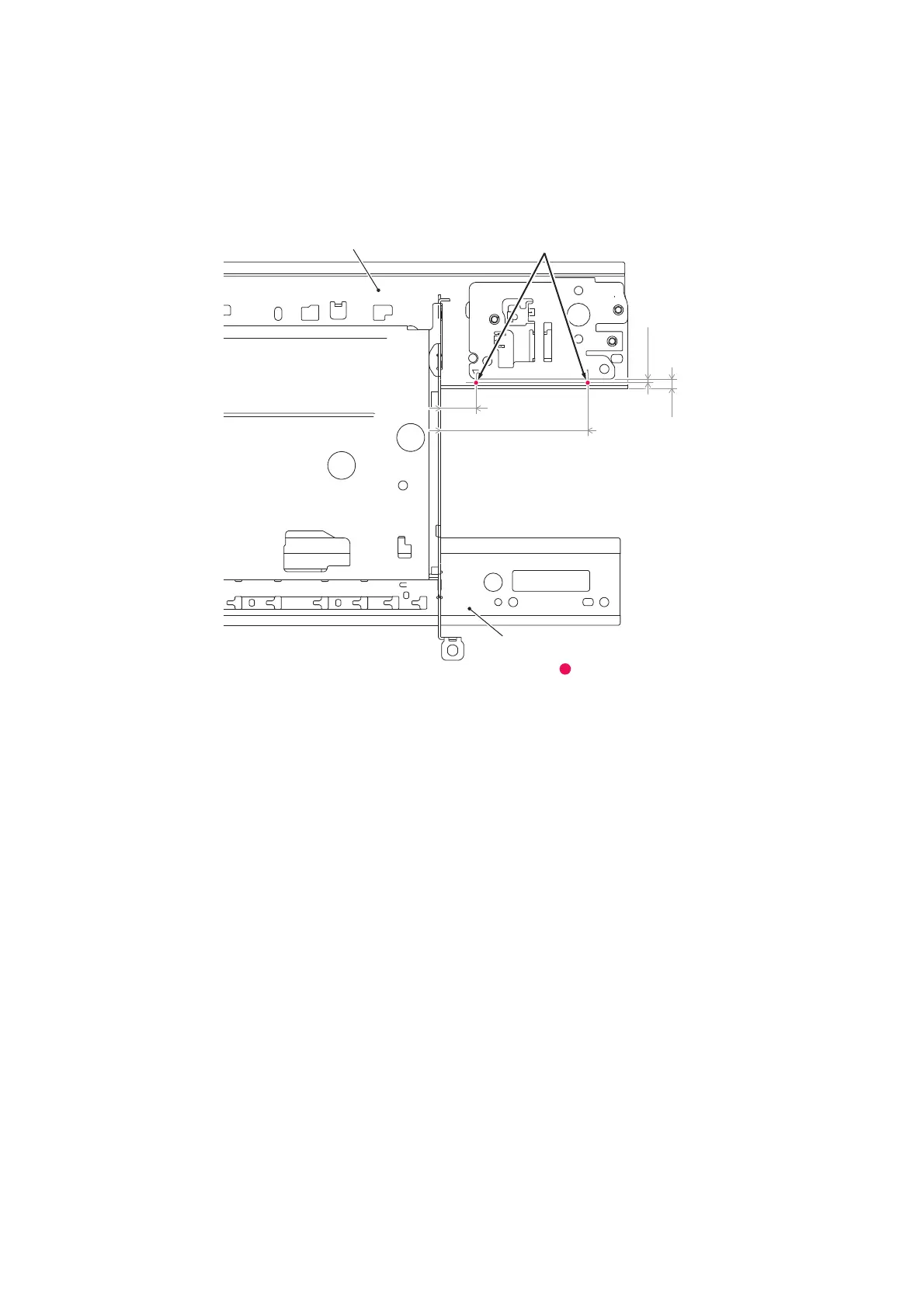

Apply grease (FLOIL BG1319) at the size of 1 mm diameter to 2 locations in total shown in the

figure below.

Apply grease here.

CR frame

CR guide rail

: grease (1.0 mm dia. ball)

(mm)

(4)

15±0.5

64±1

15±1
