 Platen

 Paper feed roller

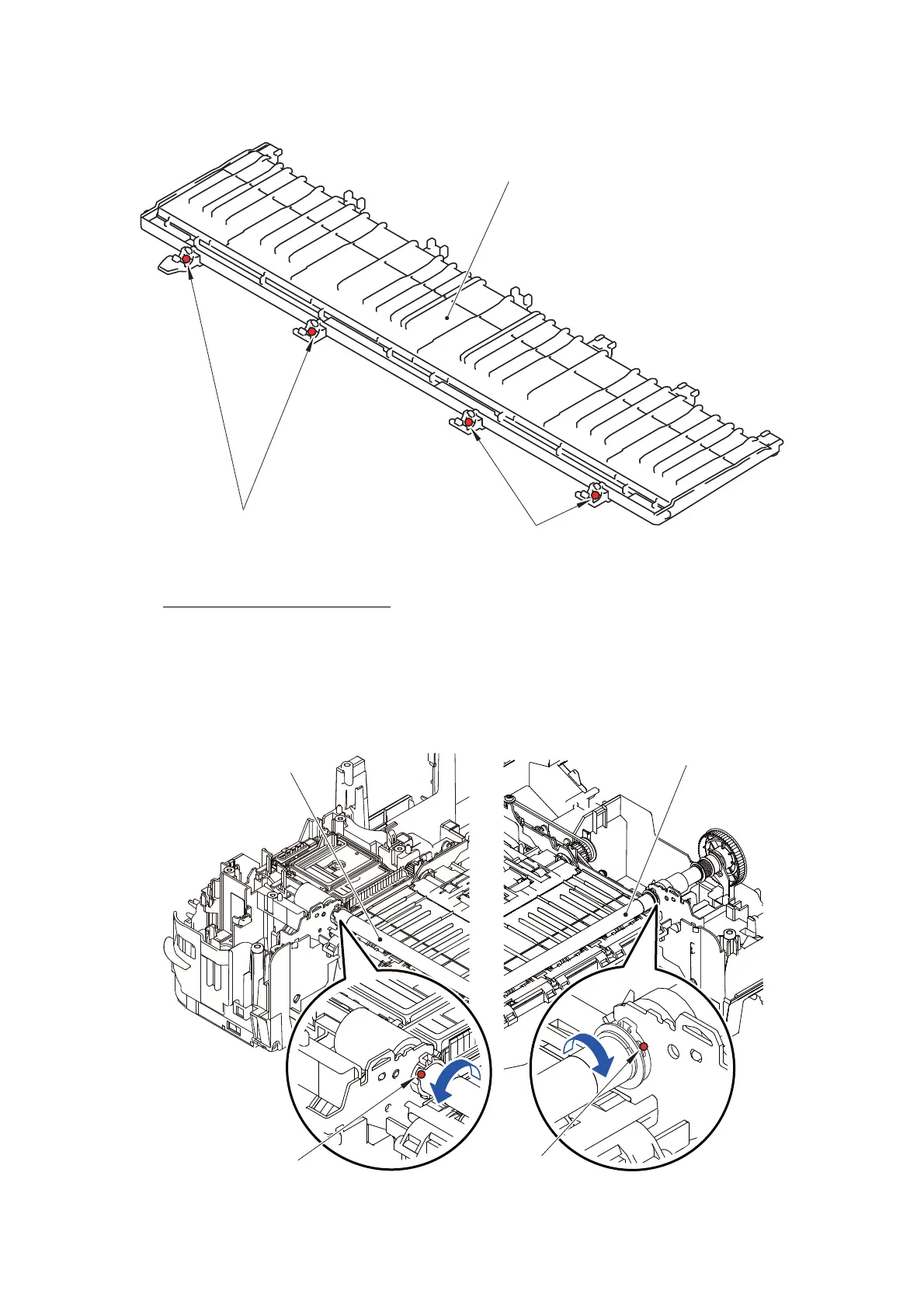

Grease application procedures

(1) Apply grease to the lubrication points.

(2) Rotate the Paper feed roller one revolution in the direction indicated by the arrow.

(3) Apply grease to the lubrication points.

(4) Rotate the Paper feed roller one revolution in the direction indicated by the arrow.

Apply grease here.

Platen

Apply grease here.

Paper feed roller
