Brother MFC-J6520DW

3-36
Confidential

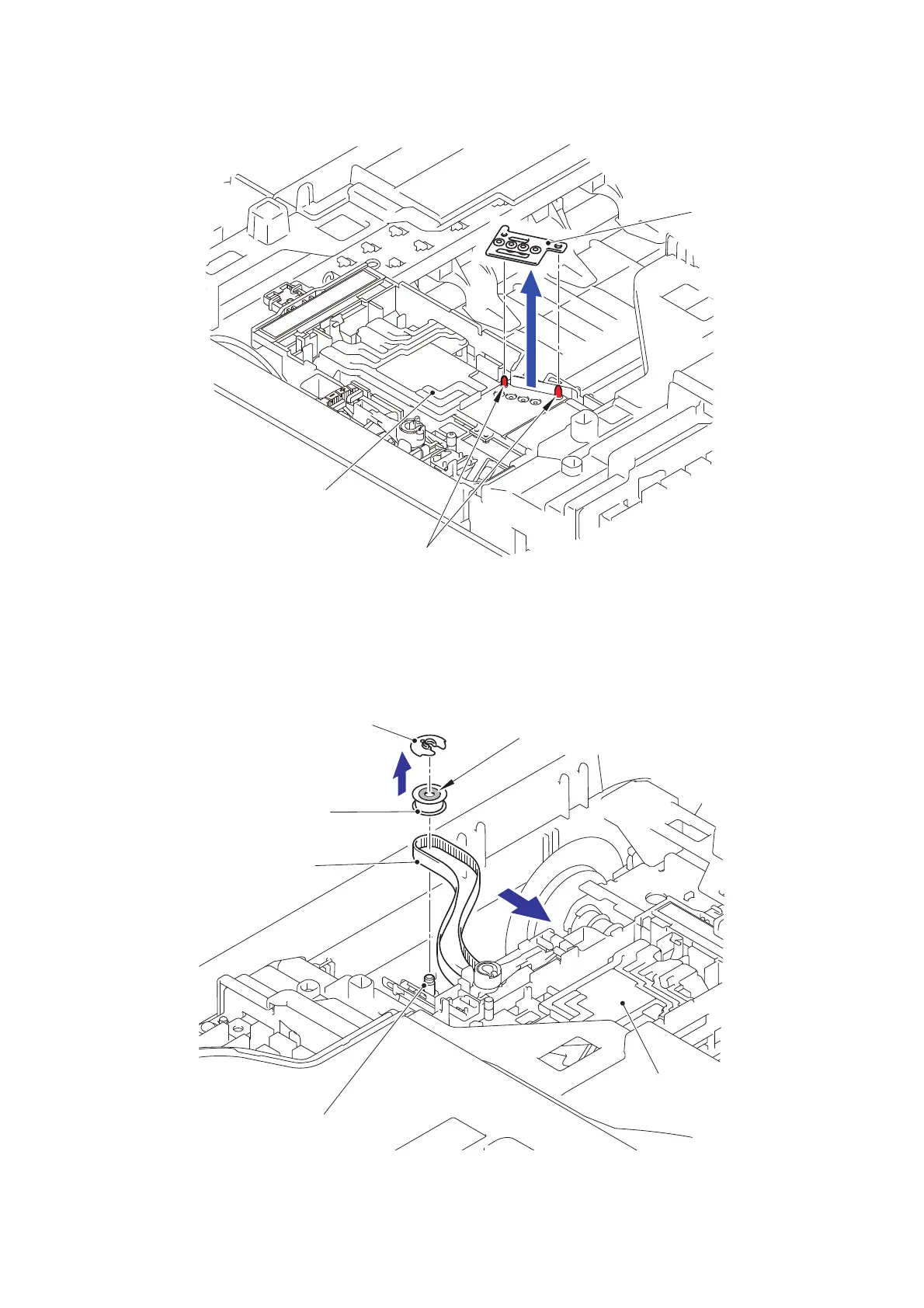

(21)Remove the Head joint rubber from the Head/carriage unit.
Fig. 3-15
(22)Move the Head/carriage unit slightly in the direction of the arrow and remove the
Resin retaining ring from the Idle pulley.
(23)Remove the Idle pulley from the CR frame ASSY.
Note: Be careful not to lose the Washer which easily comes off from the Idle pulley.
Fig. 3-16
Head joint rubber
Head/carriage unit
Bosses
Idle pulley
CR frame ASSY
CR timing belt
Resin retaining ring
Head/carriage unit
22a
22b
Washer
