Brother MFC-J6520DW

3-37
Confidential

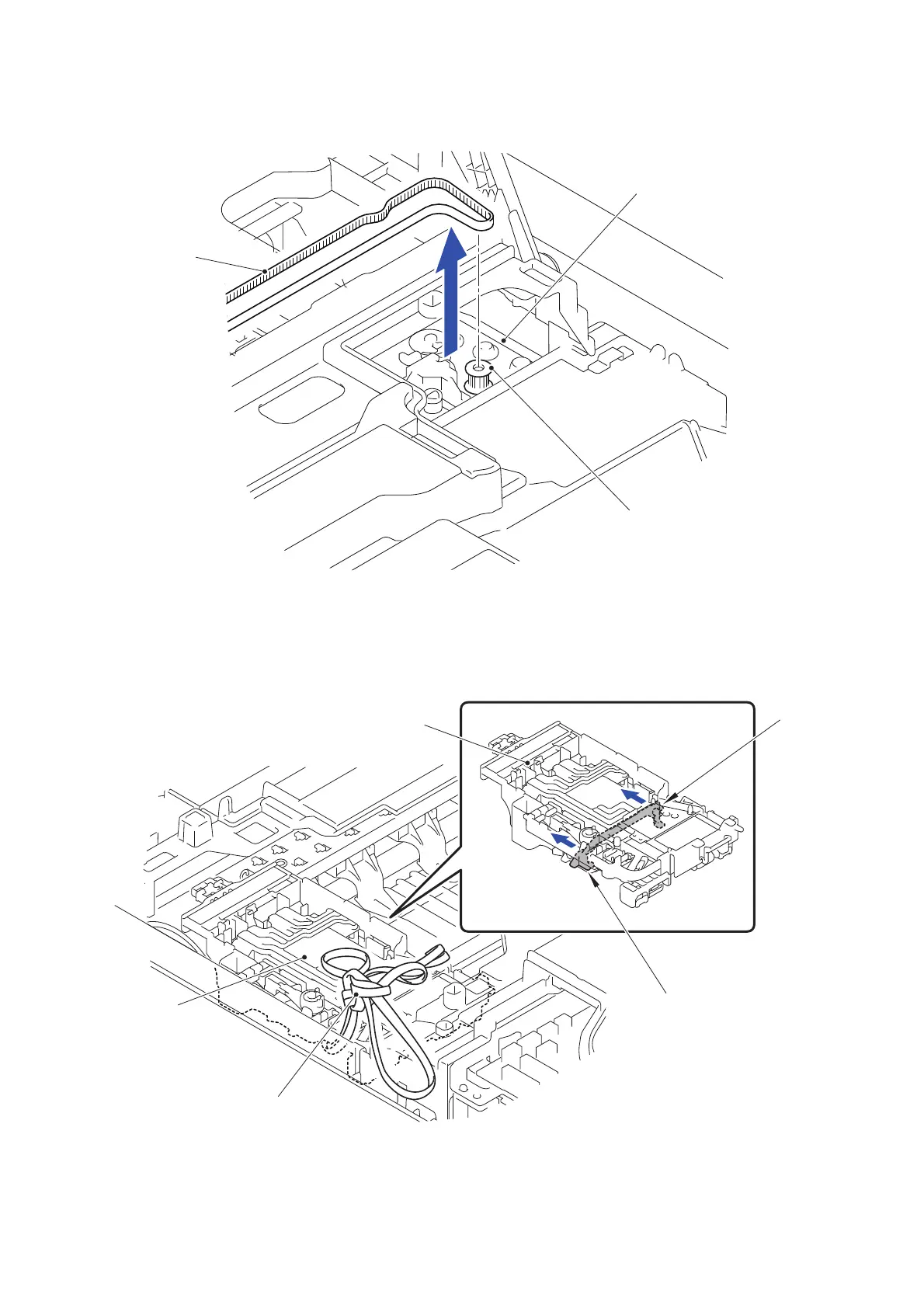

(24)Remove the CR timing belt from the Gear of the Carriage motor ASSY.
Fig. 3-17
(25)Loosely tie the CR timing belt in a bundle on the Head/carriage unit as shown in
the figure below.
(26)Pull the two Locks in the direction of the arrow to
release the position.
Fig. 3-18
CR timing belt
Gear of the Carriage motor ASSY
CR frame ASSY
CR timing belt
Head/carriage unit
Lock
Head/carriage unit
Lock
