Brother MFC-J6520DW

3-39
Confidential

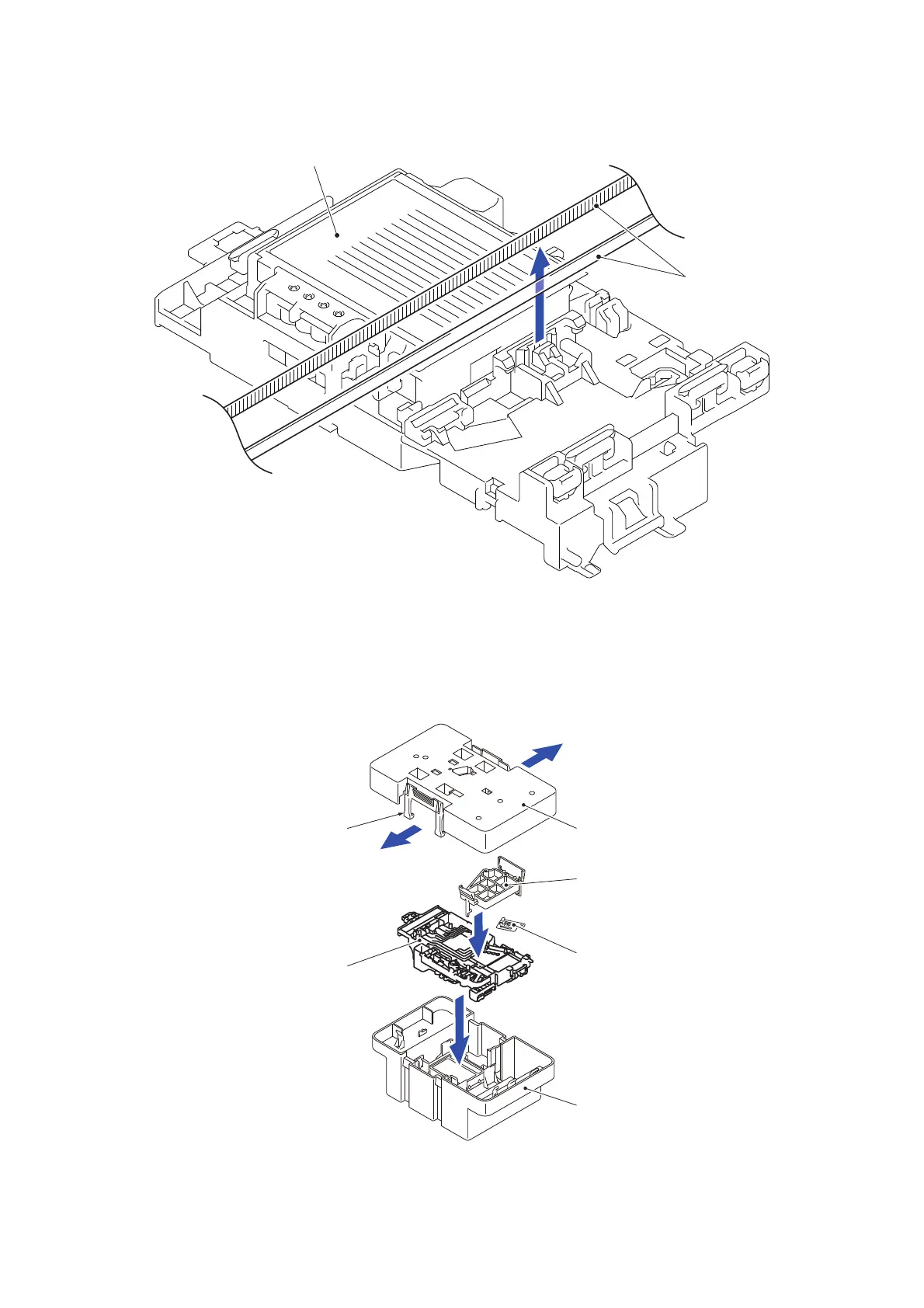

(30)Remove the CR timing belt from the Head/carriage unit.
Fig. 3-21
Note: When storing the removed Head/carriage unit for a long period, store the unit in
a Head casing as shown below. Leaving it out of the casing causes the head
nozzles and ink supply ports to dry up so that the Head/carriage unit can no
longer provide the original performance.
Fig. 3-22
Head/carriage unit
CR timing belt
Head/carriage unit
Head joint rubber
Joint cap
Latch
Head casing (upper)
Head casing (lower)
