3-40
Confidential
Assembling Note: Mount the Head/carriage unit, using the following steps.
1) When mounting a new Head/carriage unit, apply lubricant to the unit, as specified
in "5.LUBRICATION" of this chapter.

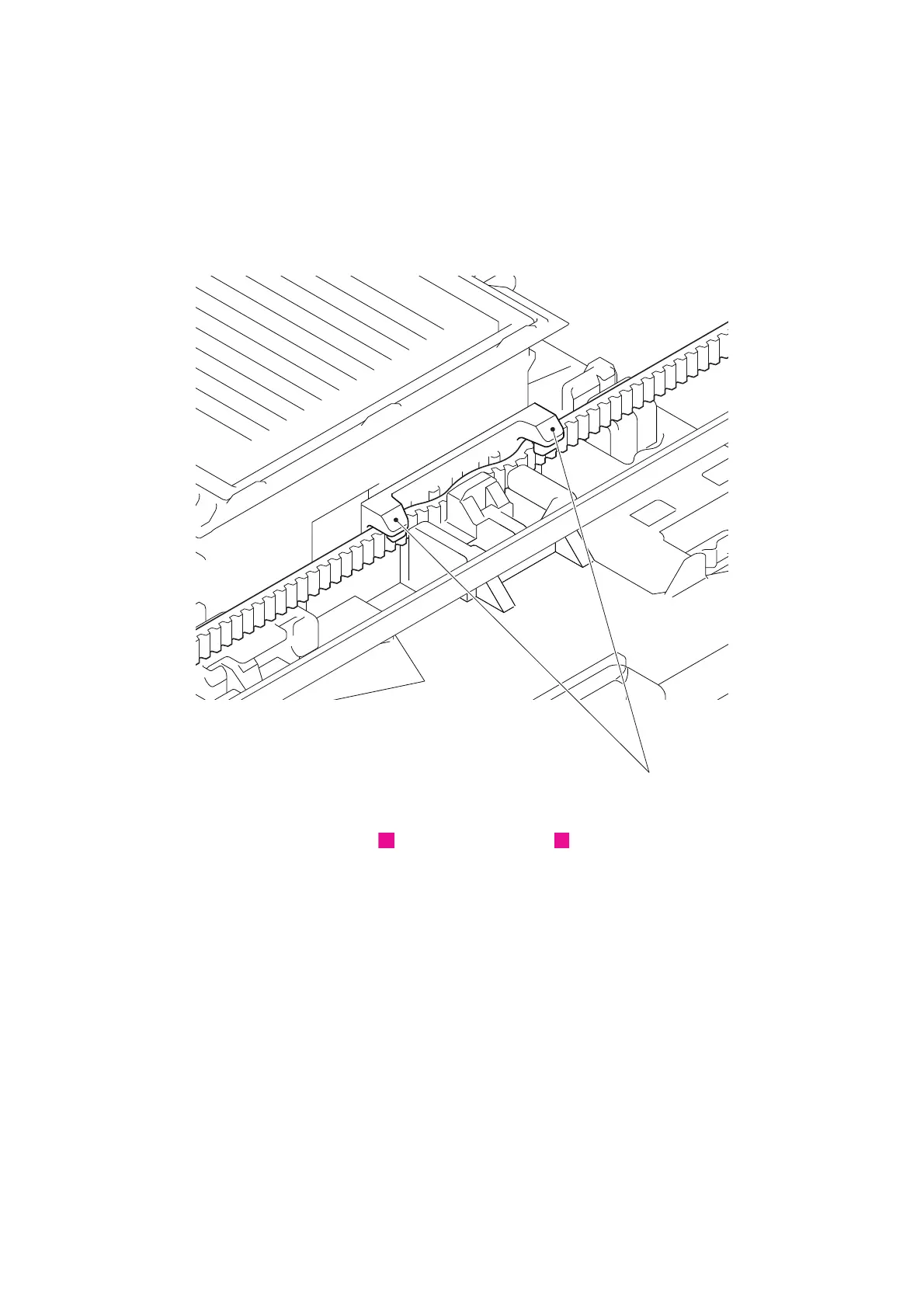

2) When mounting the CR timing belt, insert it into the Head/carriage unit so that the
toothed side faces inwards as shown below and make sure that the upper and lower
edges of the belt are fitted in the Latches.
Fig. 3-23
Harness routing: Refer to " Main PCB ASSY", " Head/carriage unit"
1
To Next Page
