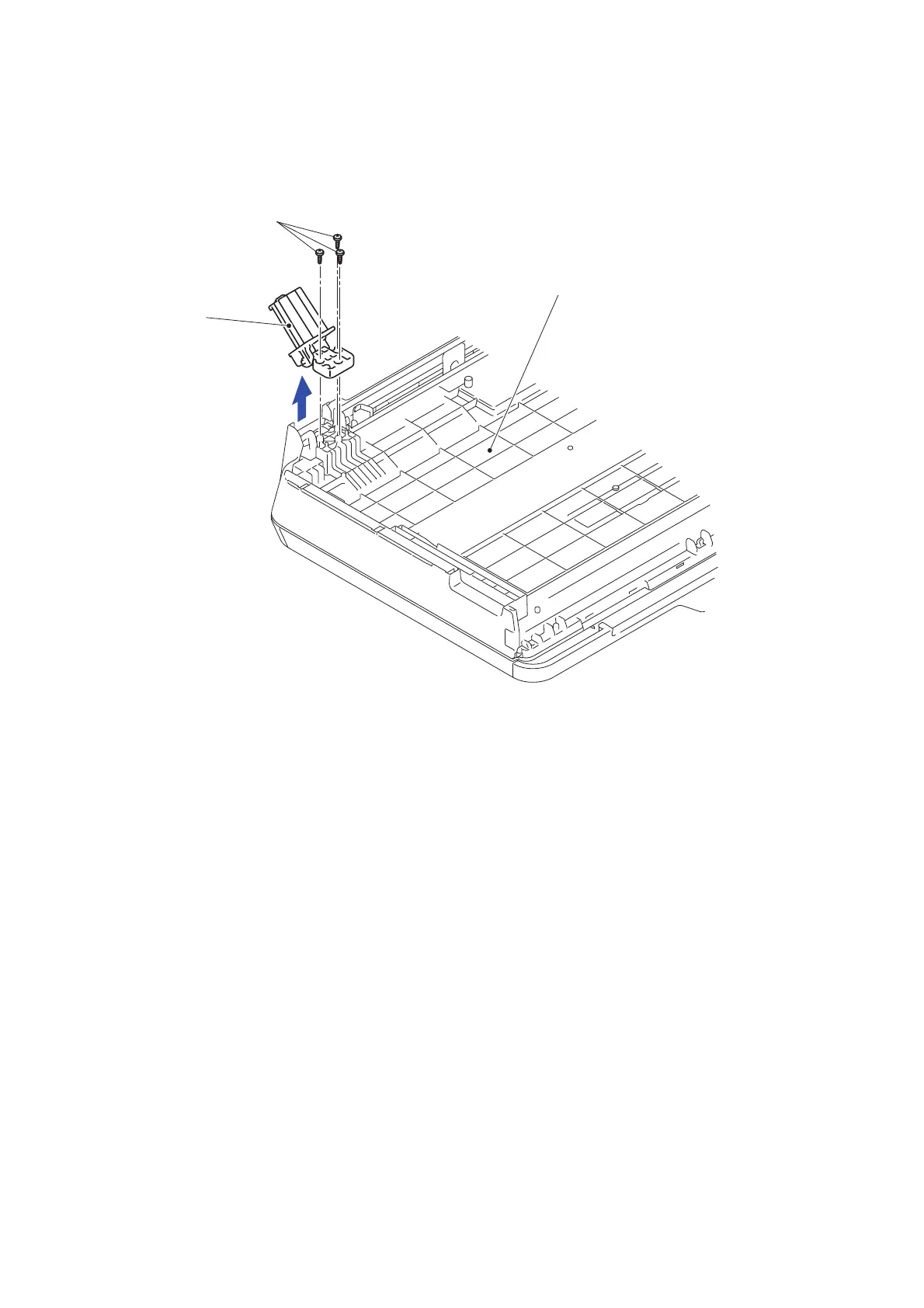

(5) Remove the three screws (TAPTITE BIND B M4x12) and take off the FB hinge

from the Document scanner unit.

(6) Remove the other FB hinge in the same way.

Fig. 3-30

TAPTITE BIND

Document scanner unit

B M4x12

FB hinge
