Brother MFC-J6520DW

To Next Page

To Previous Page

3-64

Confidential

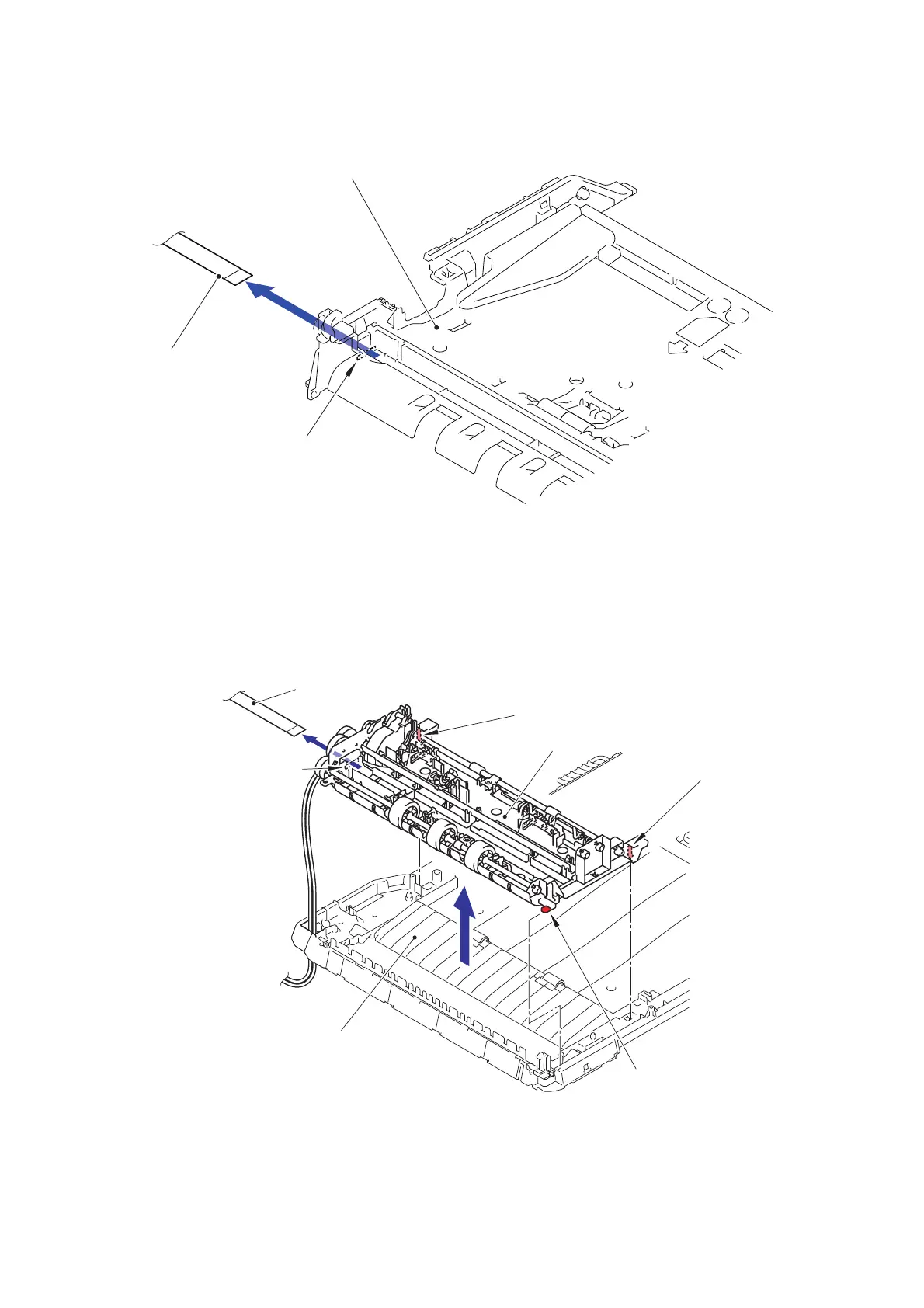

(12)Pull out the Second side CIS flat cable from the Hole of the Upper document chute.

Fig. 3-63

(13)Release the three Hooks and remove the Lower document chute from the

Document cover ASSY.

(14)Pull out the Second side CIS flat cable from the Hole of the Lower document chute.

Fig. 3-64

Second side CIS flat cable

Hole

Upper document chute

Second side CIS flat cable

Hook

Document cover ASSY

Hole

Hook

Lower document chute
