Brother MFC-J6520DW

To Next Page

To Previous Page

3-65

Confidential

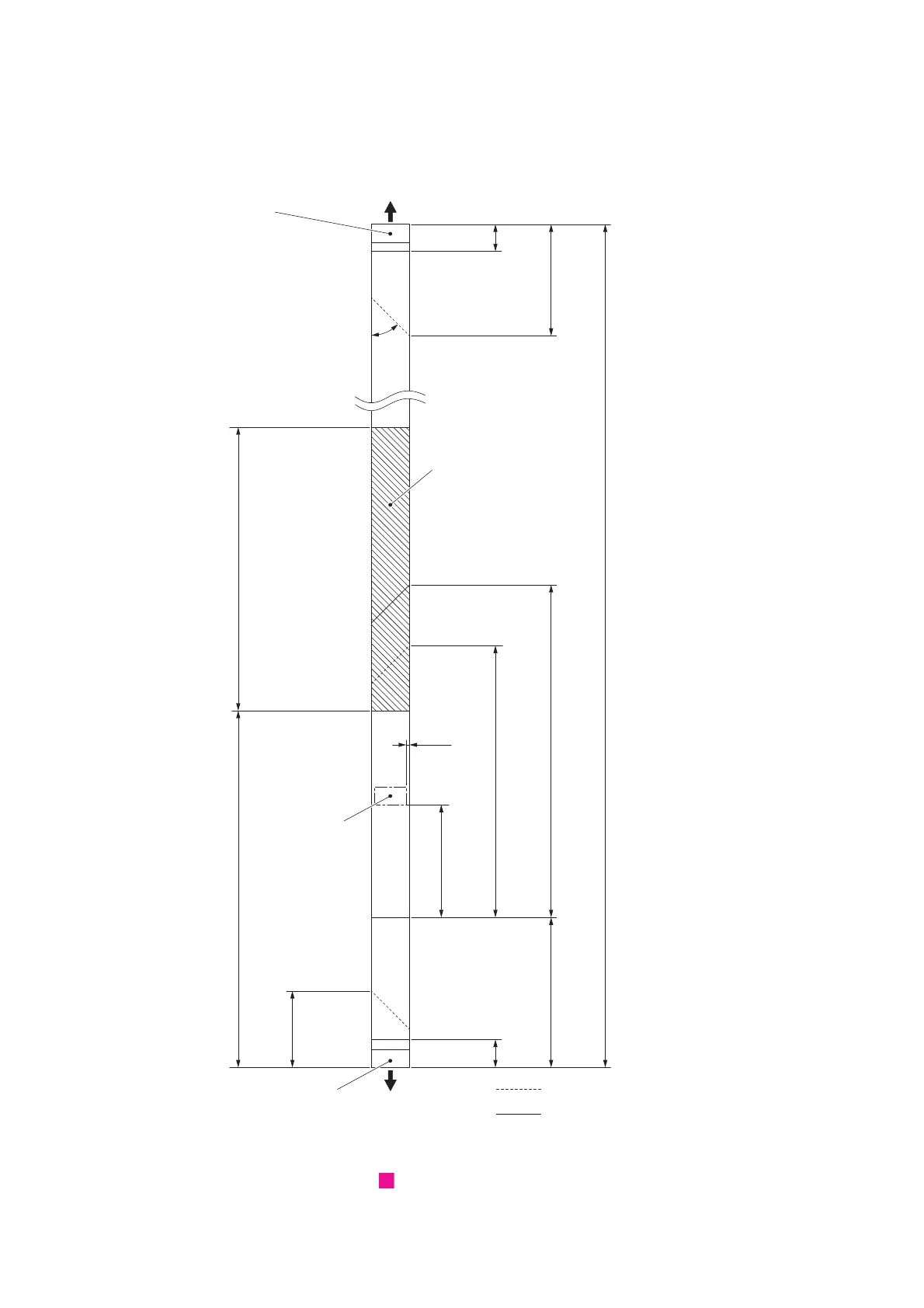

Assembling Note: Assemble a new Second side CIS flat cable by bending the

Second side CIS flat cable and affixing the Double-sided adhesive

tape as shown in the figure below.

Fig. 3-65

Harness routing: Refer to " ADF unit and document scanner unit"

Supporting tape

Tape

45°

34.04 mm

12.44±1

66.9±1

50.2±2

153.87±1

180.92±1

785±8

1.5±1 mm

(191.7 mm)

(126.2 mm)

49.67±1

12±1.5

Double-sided

adhesive tape

To main body

To CIS unit

Valley fold

Mountain fold
