(5) Remove the one screw (TAPTITE CUP S M3x6) from the CR frame ASSY.

Assembling Note:

Tighten the screw (TAPTITE CUP S M3x6) temporarily and then

perform the following procedures before mounting the Upper cover.

1) Mount the Head/carriage unit and CR timing belt to the CR frame ASSY.

2) Tighten the one screw (TAPTITE CUP S M3x6) firmly.

(6) Remove the Belt tension spring from the CR frame ASSY.

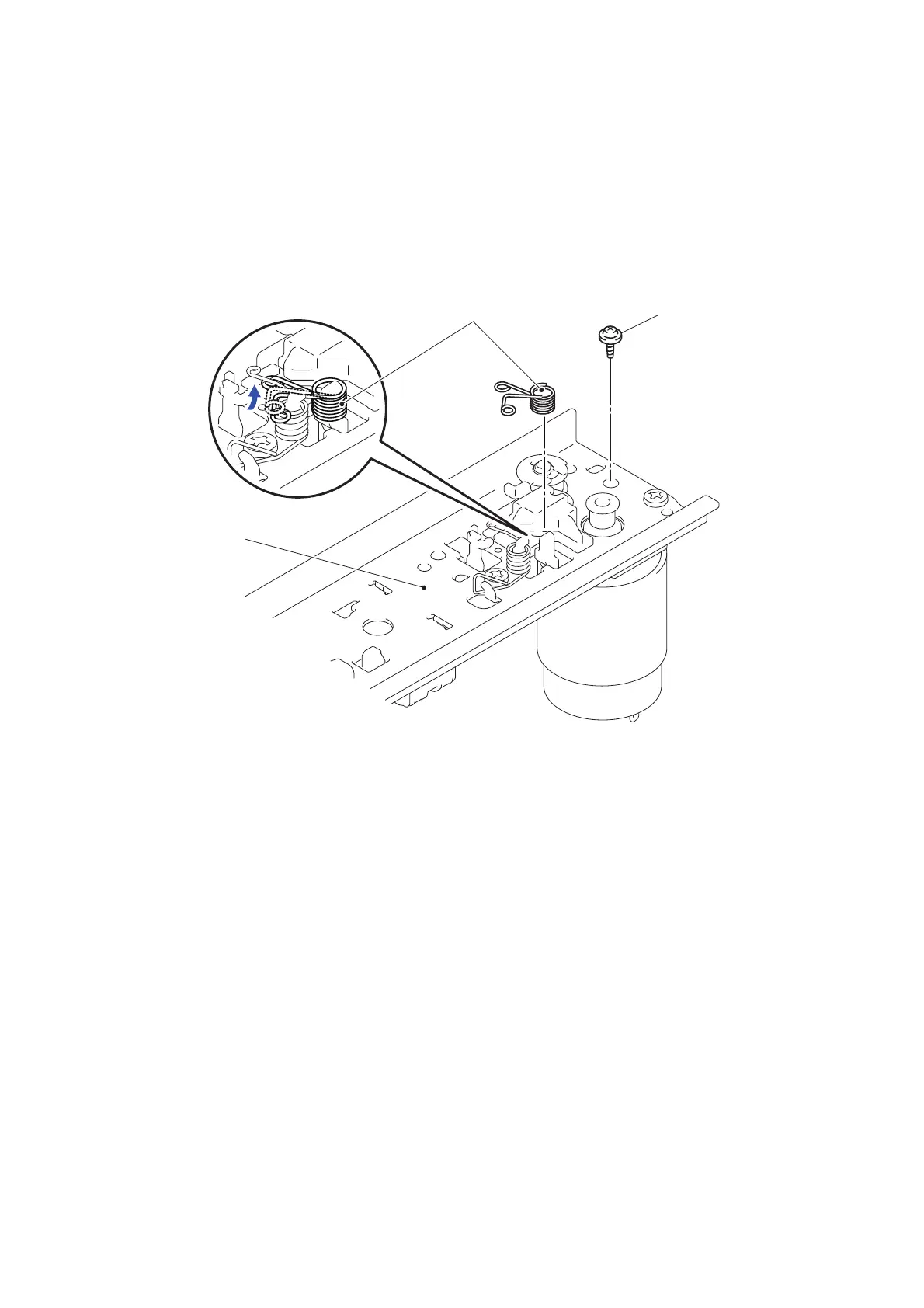

Fig. 3-124

TAPTITE CUP S M3x6

Belt tension spring

CR frame ASSY
