Brother MFC-J6520DW

To Next Page

To Previous Page

3-107

Confidential

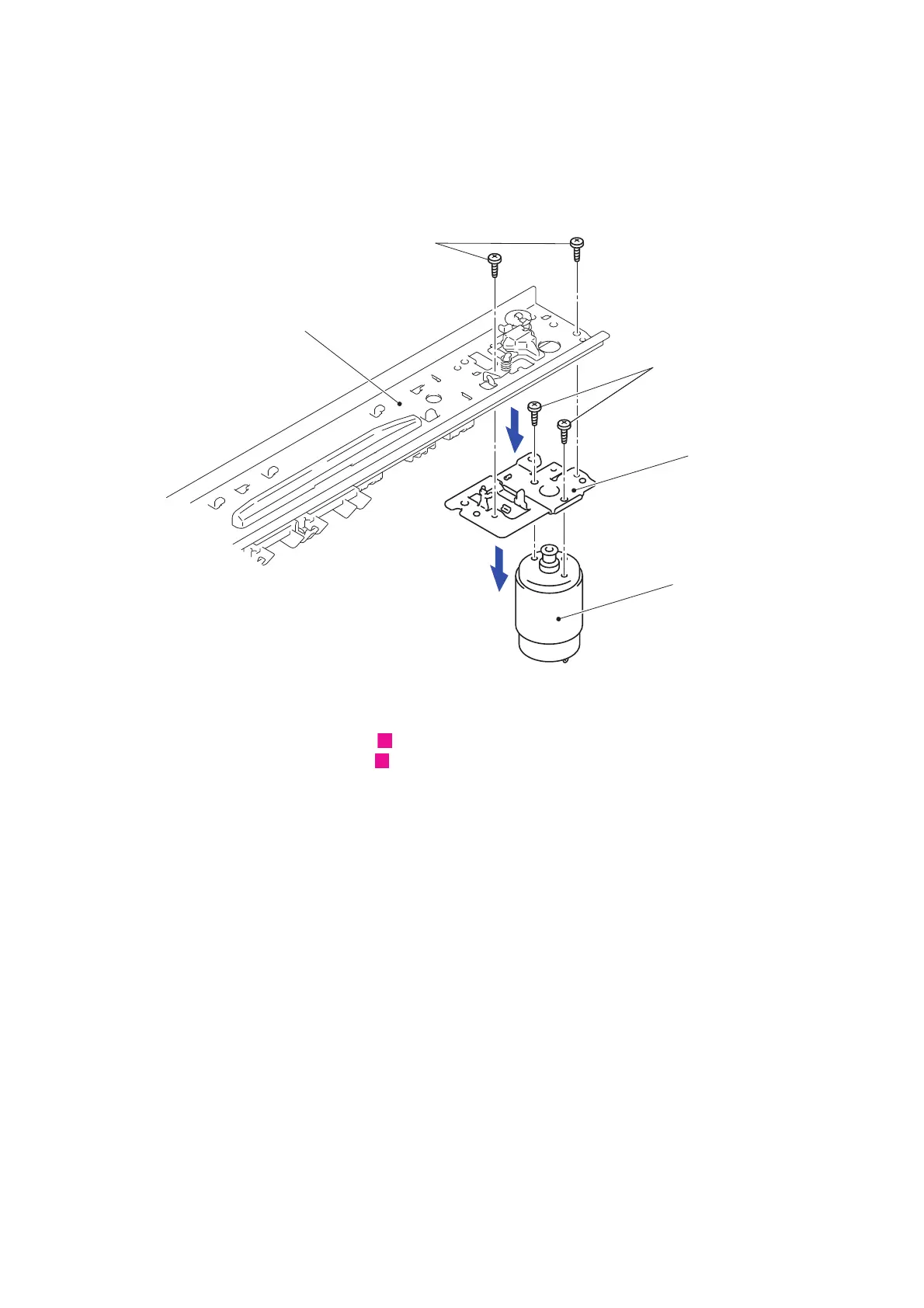

(7) Remove the two screws (SCREW BIND M3x6) and take off the Motor bracket from

the CR frame ASSY.

(8) Remove the two screws (SCREW BIND M3x6) and take off the Carriage motor

ASSY from the Motor bracket.

Fig. 3-125

Harness routing: Refer to " Carriage motor harness and ink cartridge cover sensor

ASSY", " Switchback sensor PCB"

SCREW BIND M3x6

Motor bracket

CR frame ASSY

Carriage motor ASSY
