BRP-Rotax
INSTALLATION MANUAL
Terminal (Supply) Terminal (Ground) Interface
Parameter
Min. Max. Nomi-
nal
N
LANE_SEL_
SW_A_1
P
LANE_SEL_SW_
A_2
Nominal
Voltage
12 V
Nominal
Current
7.5 A
F
SIG_FUEL_
PUMP_1
E
GND_FUEL_
PUMP_1
Nominal
Voltage
12 V
Nominal
Current
10 A
Harness Interface
Connector B
916 i TYPE C24

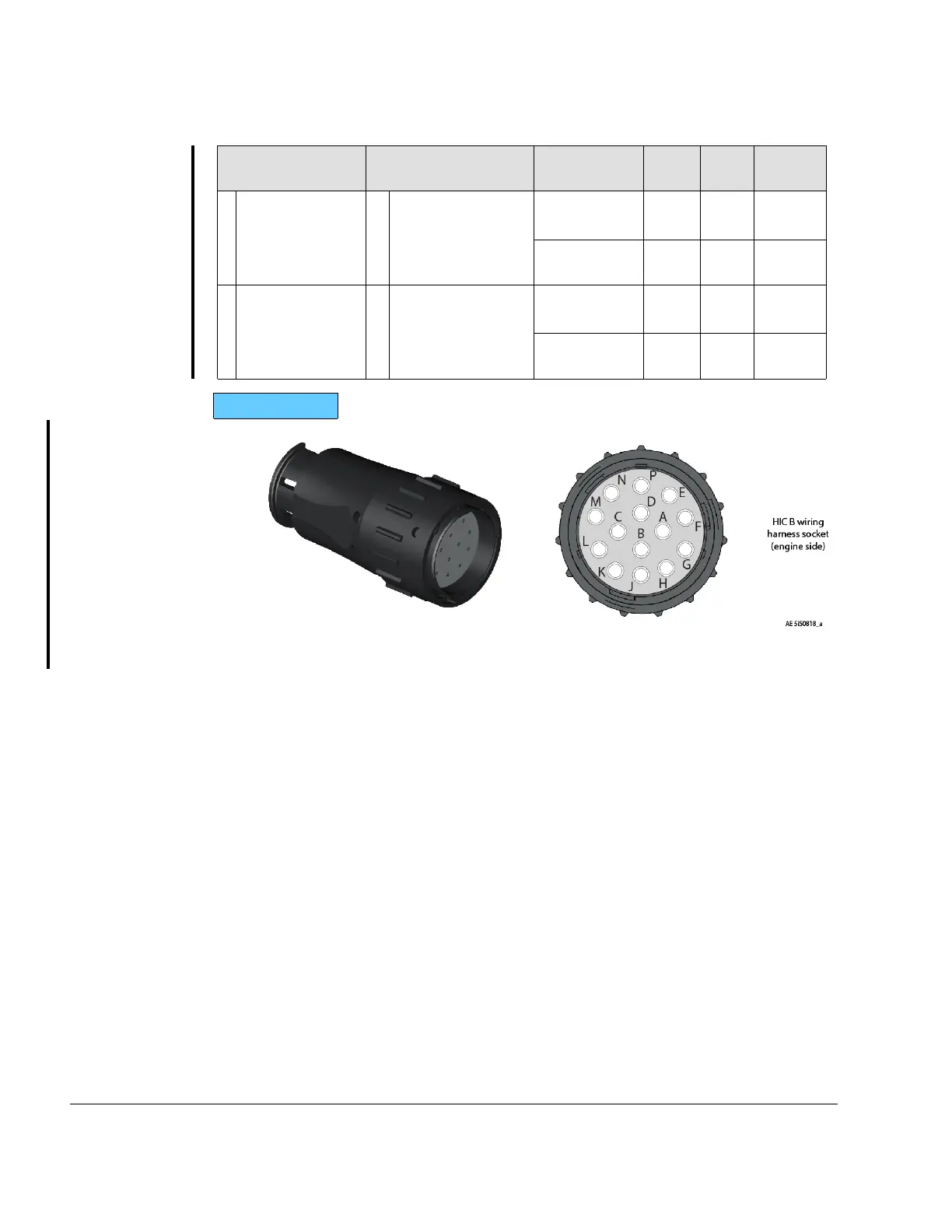

Figure 9.11: HIC B connector
In case the EMS is powered by an external power source or by one of the internal
generators:
A connection between Terminal N and Terminal P will power ECU Lane B
76–00–00
Page 12
December 01 2023
Effectivity: 916 i A / C24
Edition 0/Rev. 1
