BRP ROTAX 916 i A Series Installation Manual

BRP-Rotax
INSTALLATION MANUAL
The Display CAN is based on the CAN Aerospace protocol. For detailed interface descrip-
tion contact an authorized ROTAX® Distributor or its independent Service Center.
Harness Interface
Connector B
The HIC Connector B is equipped with a Maintenance CAN interface, a Display CAN inter-
face and terminals which can be used to actuate a warning lamp indicating the current sta-
tus of the ECU Lane B. Interfaces to control elements are described in Chapter 76-00-00.
916 i TYPE C 24

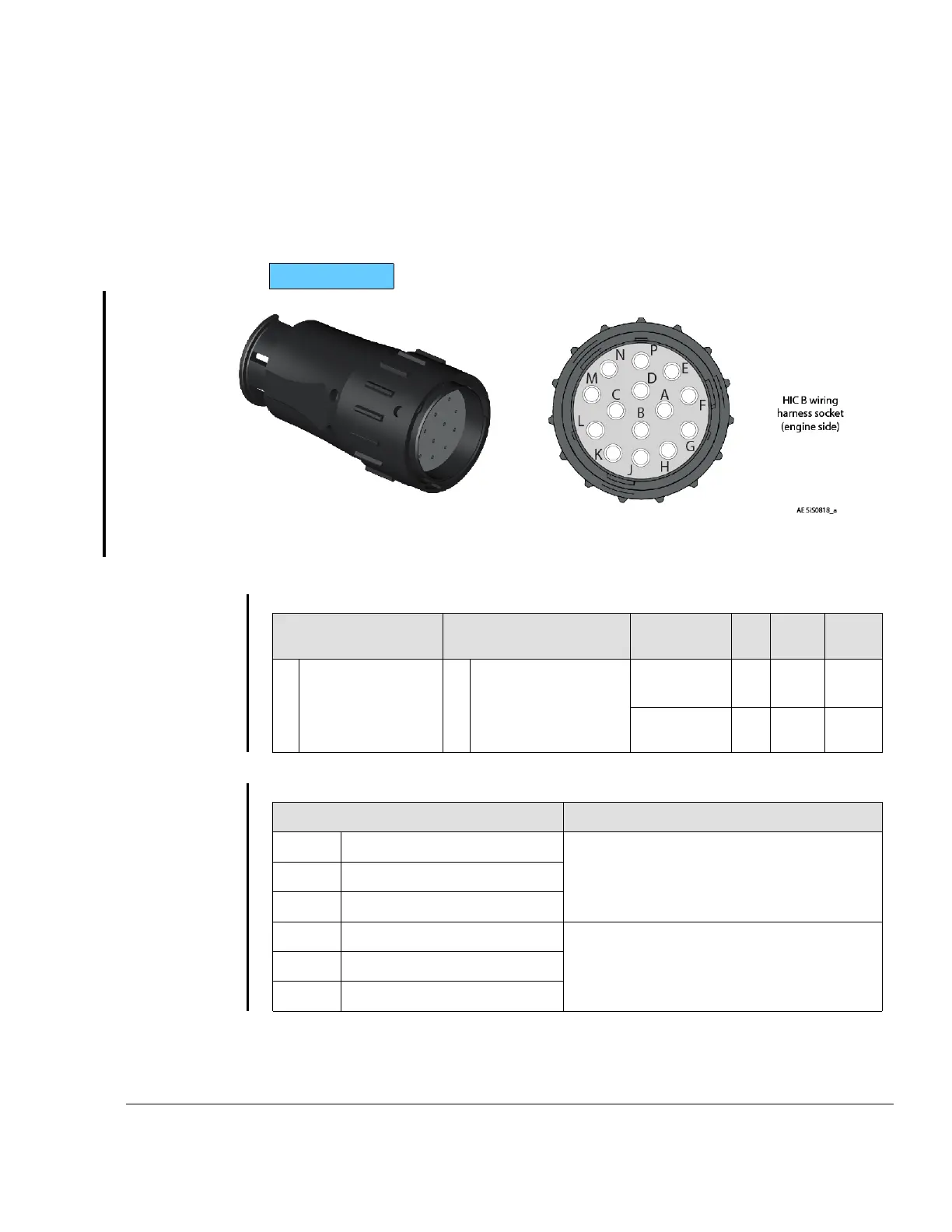

Figure 10.8: HIC B Connector
Warning lamp
Terminal (Supply) Terminal (Ground) Interface
Parameter
Mi-
n.
Max. Nom-
inal
A
SUPP_WARN_
LAMPE_B
D WARN_LAMP_B Nominal
voltage
12 V
Nominal
current
120
mA
CAN Interfaces
Terminal
Specification
C CAN_GND_1_B Display CAN Lane B
L
CAN_LOW_1_B
M
CAN_HIGH_1_B
B
CAN_GND_2_B Maintenance CAN Lane B
J
CAN_LOW_2_B
K
CAN_HIGH_2_B
Connector: HIC Connector B (included in the engine’s scope of delivery).
The HIC Connectors must be mounted according to the procedure prescribed in Chapter
76-00-00.
Effectivity: 916 i A / C24
Edition 0/Rev. 1
77–00–00
Page 11
December 01 2023
