BRP-Rotax
INSTALLATION MANUAL

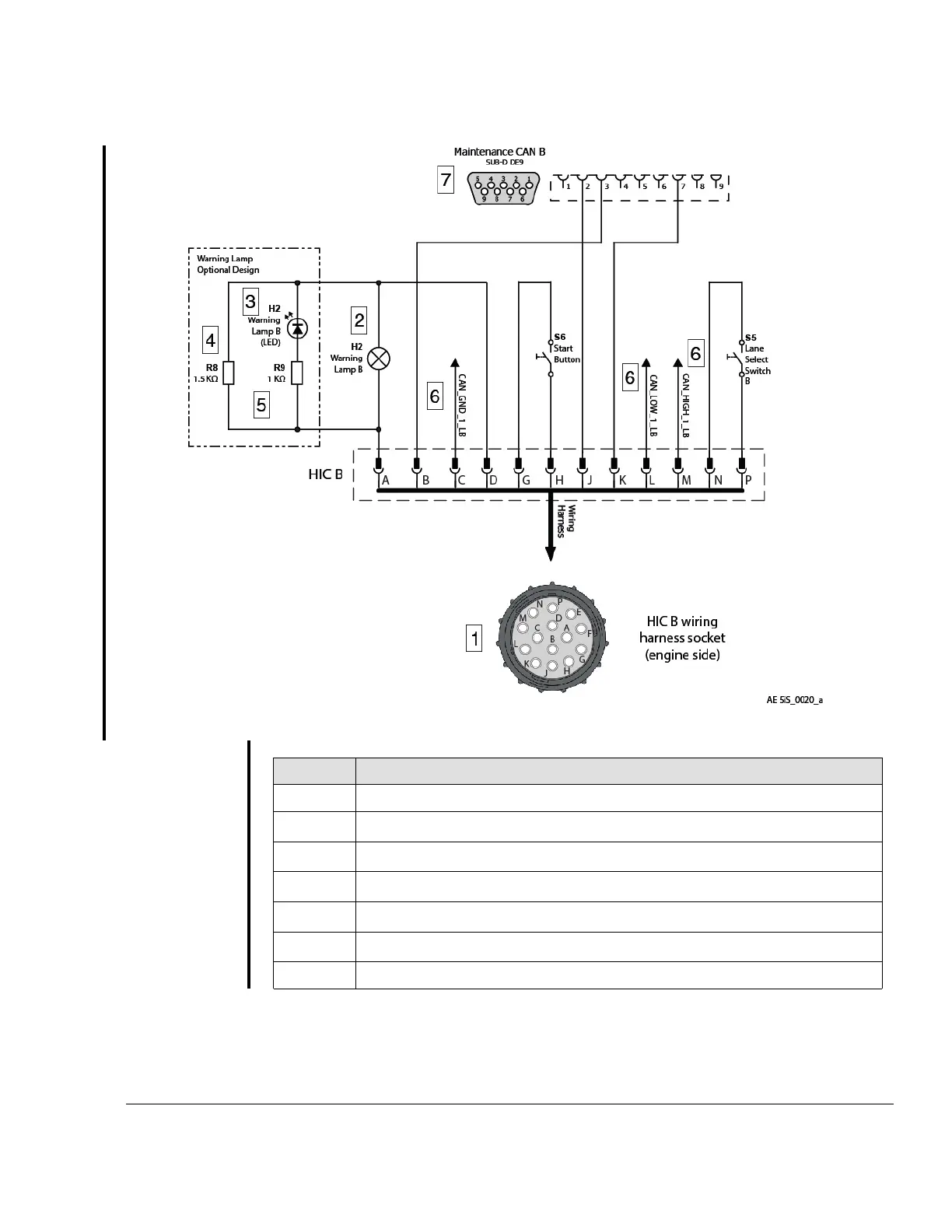

Figure 10.12: Harness Interface Connector B-Schematic
Part Function
1 Harness Interface Connector B
2
Warning Lamp B (-H2)
3
Warning Lamp B (LED) (-H2 V2)
4
Resistor 1.5 kΩ (-R8)
5
Resistor 1 kΩ (-R9)
6
Display CAN B
7
Maintenance CAN B
Effectivity: 916 i A / C24
Edition 0/Rev. 1
77–00–00
Page 17
December 01 2023
