2007 Buell Lightning: Engine 3-25
HOME
29. See Figure 3-20. Disconnect clutch cable.
a. Remove wire form retainer and lower retaining
clamp.
b. Slide clutch cable adjuster boot (2) up to access
clutch adjuster.
c. Loosen clutch adjuster to release tension from hand
lever.
d. Remove clutch cable ferrule from hand lever.
30. See Figure 2-21. Remove two fasteners (2) and remove
sidestand assembly.
31. Support engine with wide scissors jack.

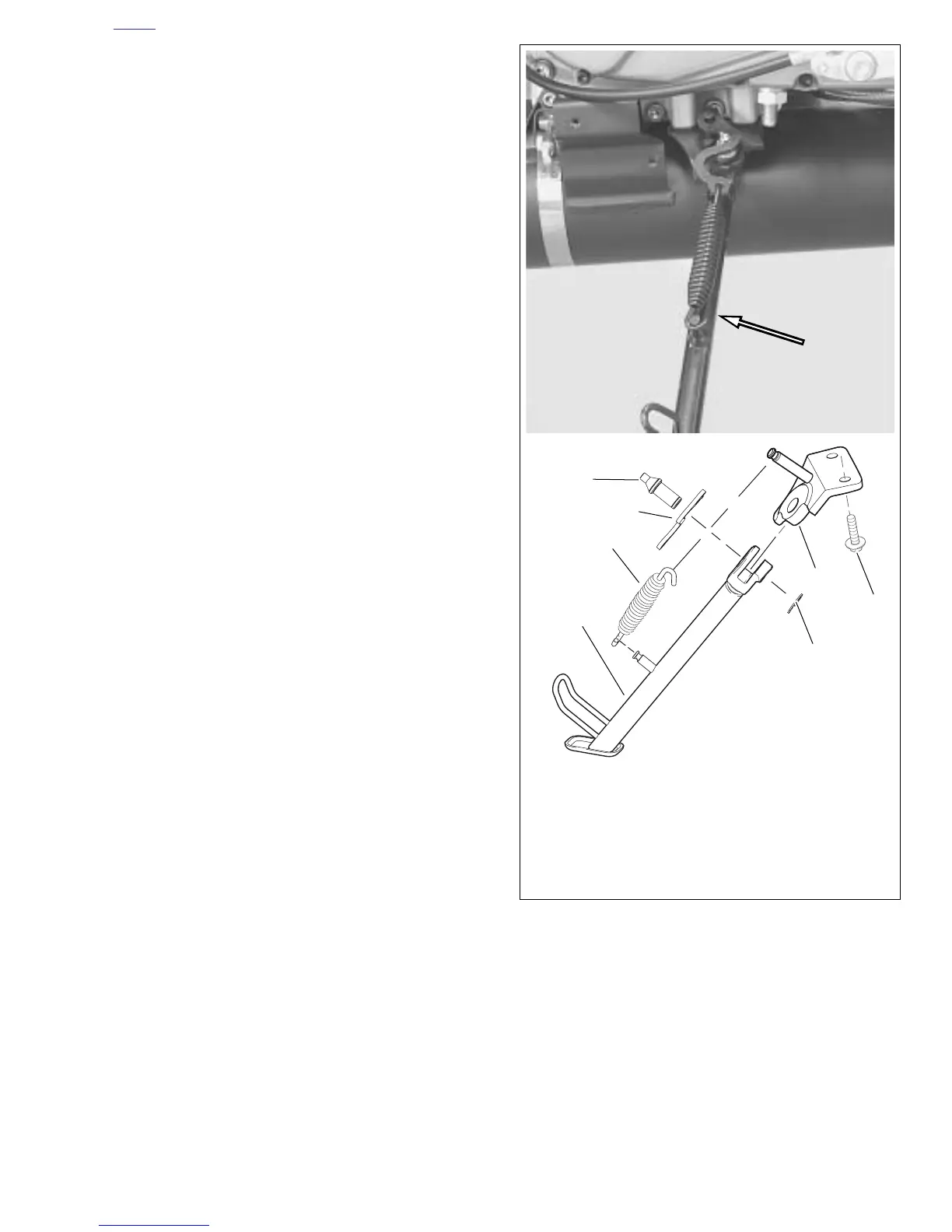

Figure 2-21. Sidestand Assembly (Extended)
b0946g2x
3
2
1
4
5
6
7
1. Leg
2. Spring
3. Pivot pin
4. Extension plate
5. Bracket
6. Bracket fastener (2)
7. Pivot pin circlip
