2007 Buell P3: Chassis 2-35
HOME
CLEANING AND INSPECTION
11WARNING1WARNING
Use denatured alcohol to clean brake system compo-
nents. Do not use mineral-based solvents (such as gaso-
line or paint thinner), which will deteriorate rubber parts
even after assembly. Deterioration of these components
can cause brake failure, which could result in death or
serious injury. (00291a)
1. Thoroughly clean master cylinder and all brake system
components. Stand master cylinder on wooden block or
towel to protect seating surfaces.
a. Examine walls of master cylinder reservoir for
scratches and grooves. Replace if damaged.
b. Verify that vent holes on master cylinder are com-
pletely open and free of dirt or debris.
2. Inspect boot on front of master cylinder for cuts, tears or
general deterioration. Replace if necessary.
ASSEMBLY
1. See Figure 2-50. Insert piston assembly (4), spring first,
into master cylinder.
2. Place round side of rod assembly (3) over piston.
Depress piston into master cylinder body (1) and secure
with a new snap ring (2).
3. Tuck rubber boot on rod assembly (3) into master cylin-
der body (1).

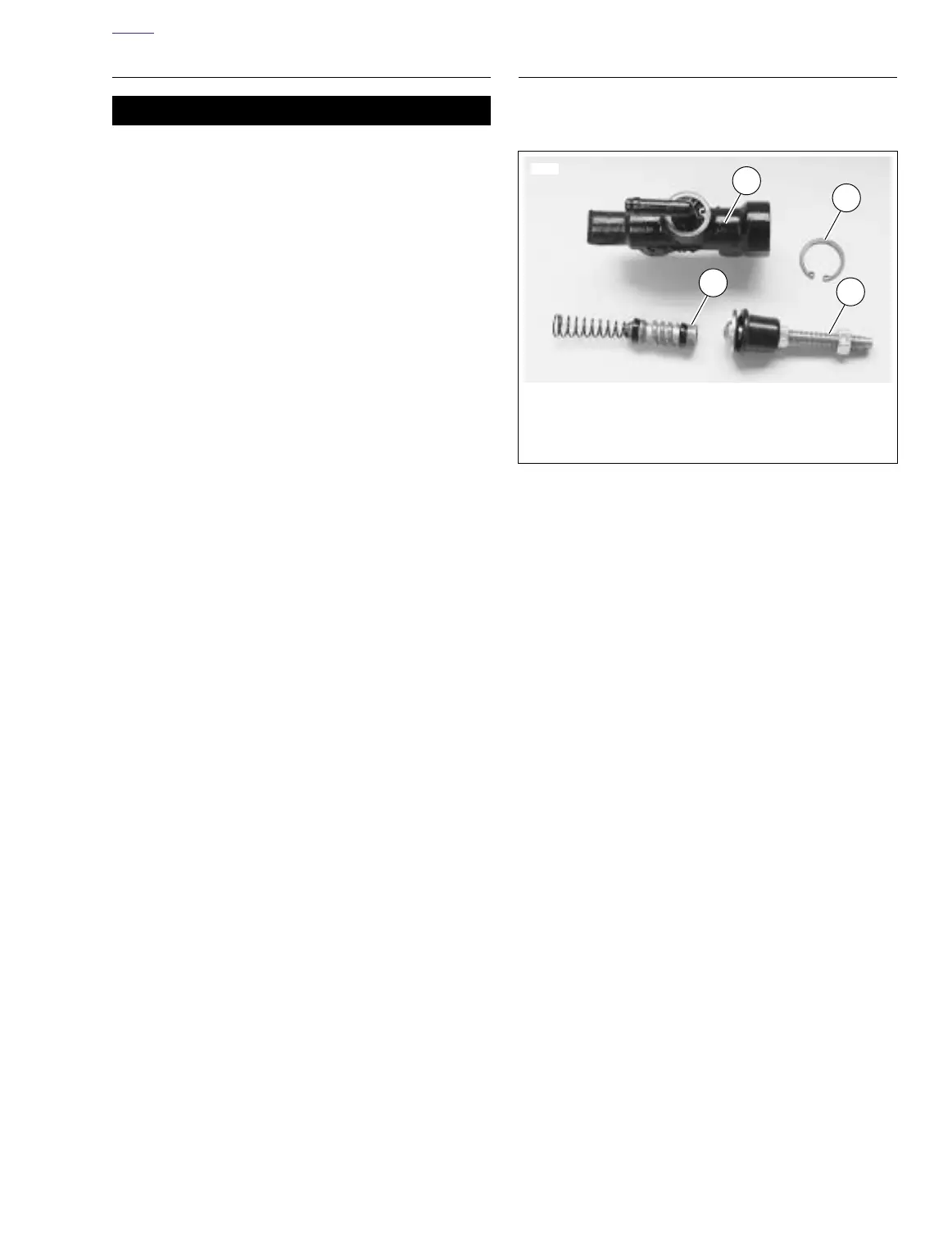

Figure 2-50. Master Cylinder Internals
6506a
1
2
3
4
1. Master cylinder body
2. Snap ring
3. Rod assembly
4. Piston assembly
