2-54 2007 Buell P3: Chassis
HOME
16. See Figure 2-91. Install new dust seal onto slide pipe.
17. See Figure 2-92. Remove the tape from the slider tube
end.
NOTE
The recommended fork oil is hydraulic fork oil type “E”.
18. Pour 9.2 oz. (272 ml) fork oil into fork.
19. Install lower spring joint and spring collar.
20. Coat a new o-ring with fork oil or sealing grease.
21. Install new o-ring onto spring seat.
22. See Figure 2-93. Push down on spring seat past groove
to install stopper ring. Stopper ring will lock into groove
when installed correctly.
23. See Figure 2-94. Install slider tube cap.
24. See Figure 2-95. Install fork assemblies through upper
and lower triple clamps.

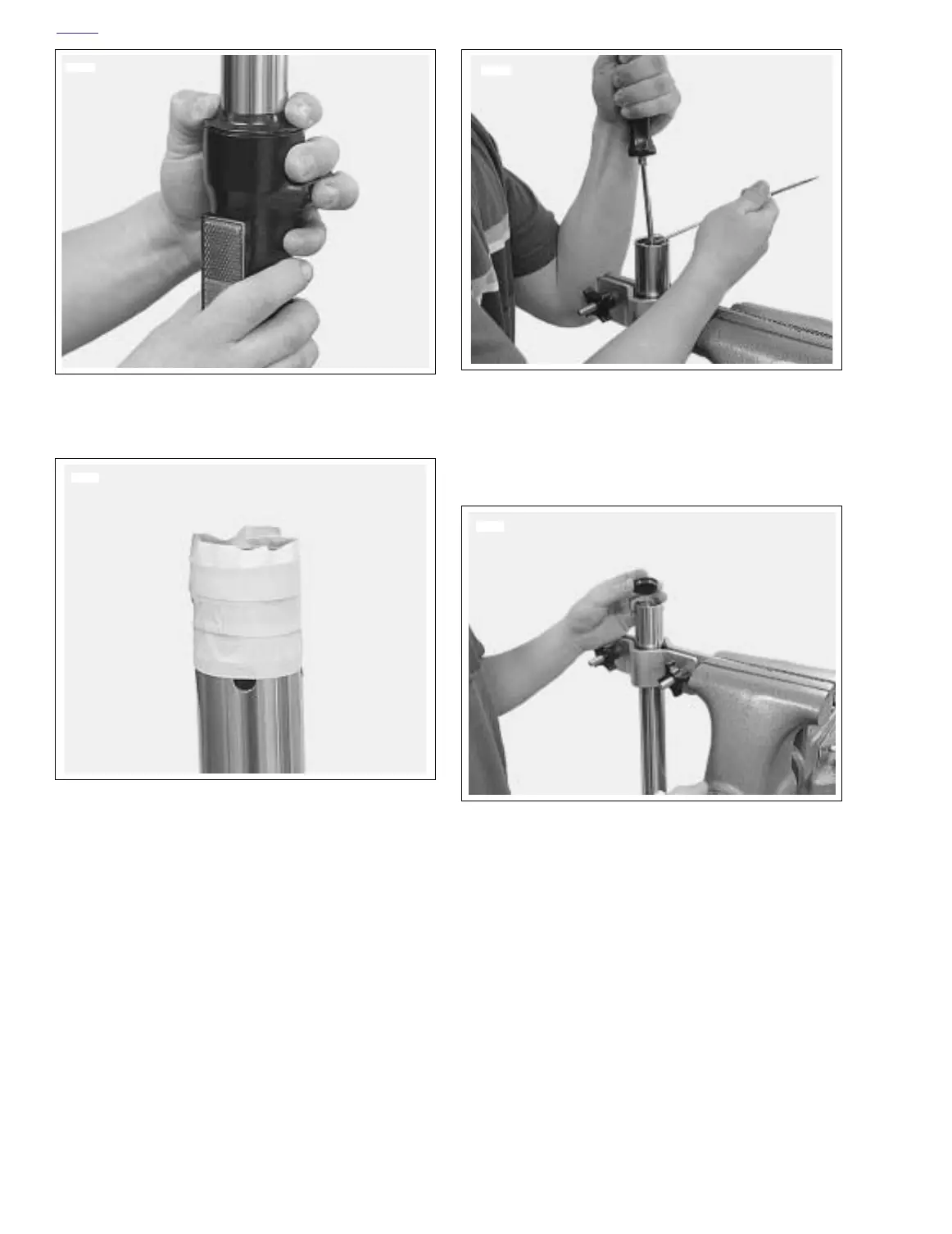

Figure 2-91. Install New Dust Seal
Figure 2-92. Remove Slider Tube Protection
3788
3781
Figure 2-93. Compressing Spring Seat to Install
Stopper Ring
Figure 2-94. Slider Tube Cap
3769
3768
