B-4 Appendix B: Wiring
HOME
WIRE TERMINALS
Remove Terminals from Housing
1. See Figure B-2. Bend back the latch (1) to free one end
of secondary lock (2) then repeat on the opposite end.
Hinge the secondary lock outward.
2. Look in the terminal side of the connector (opposite the
secondary lock) and note the cavity next to each termi-
nal.
3. Insert the terminal tool into the cavity until it stops.
Socket: SOCKET TERMINAL TOOL (HD-39621-27)
Pin: PIN TERMINAL TOOL (HD-39621-28)
NOTE
If socket/pin terminal tool is not available, a push pin/safety
pin or a Snap-On (Part No. TT600-3) pick may be used.
4. Press the tang in the housing to release the terminal.
Socket: Lift the socket tang (8) up.
Pin: Press the pin tang (7) down.
NOTE
A “click” is heard if the tang is released.
5. Gently tug on wire to pull wire and terminal from cavity.

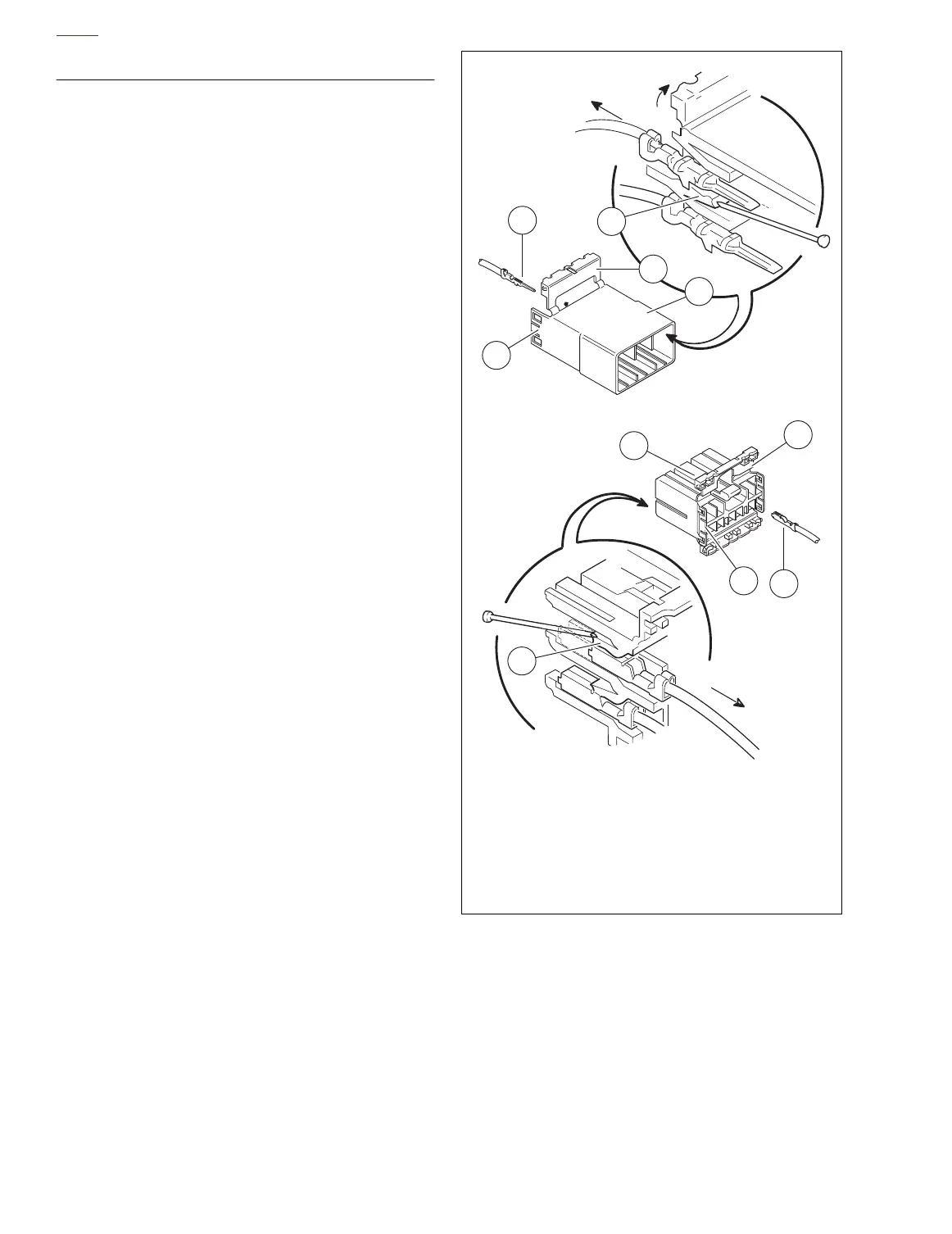

Figure B-2. Socket and Pin Housings
5
2
7
1
3
6
1
2
4
8
f2522x1x
1. Latch
2. Secondary lock open
3. Pin housing
4. Socket housing
5. Socket terminal
6. Pin terminal
7. Tang (pin)
8. Tang (socket)
