Section 7. Installation
196

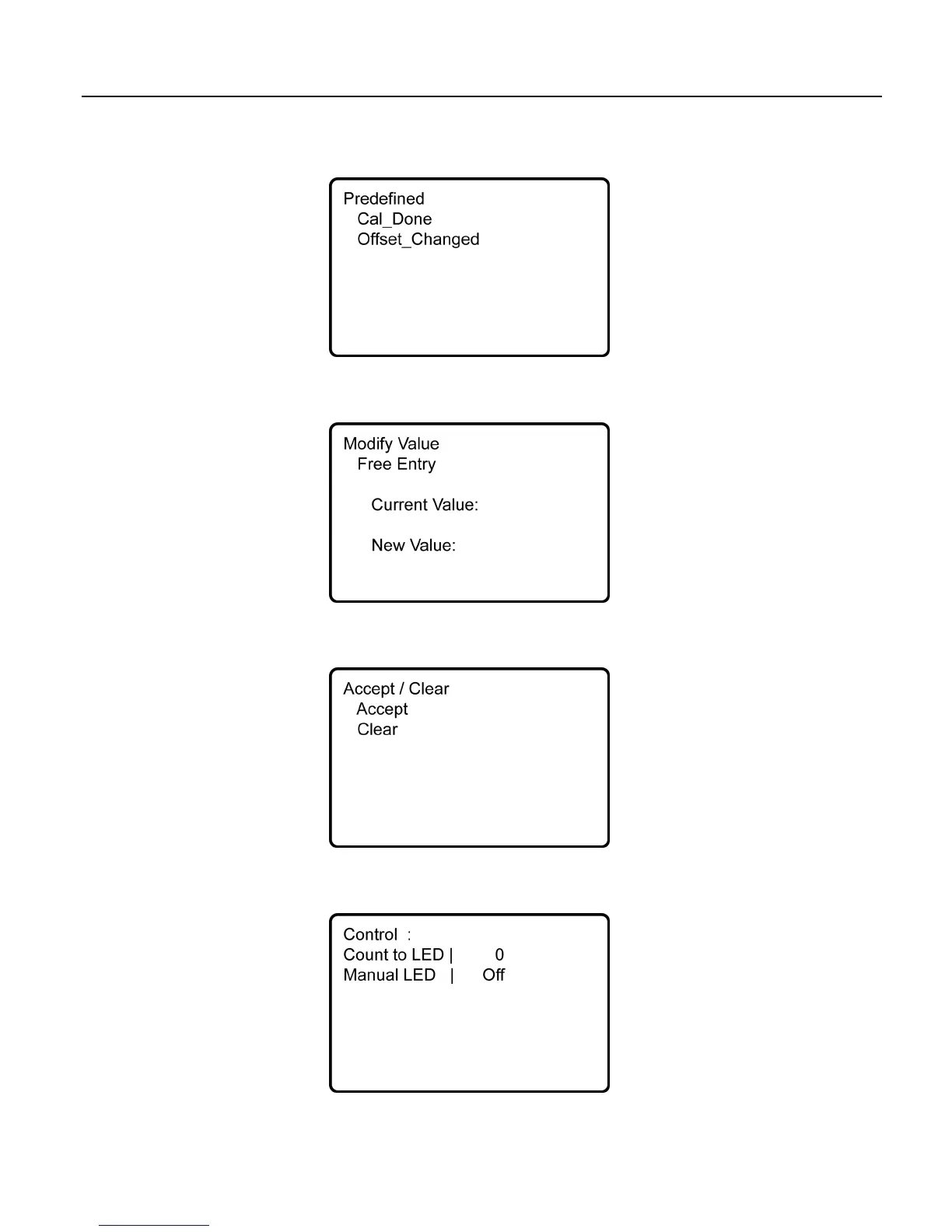

Figure 63: Custom menu example —
Predefined-notes pick li
st
Figure 64: Custom menu example —
Free-Entry notes windo
w
Figure 65: Custom menu example —
Accept / Clear notes wind
ow
Figure 66: Custom menu example —
Control sub menu
195
197
