Section 7. Installation
98

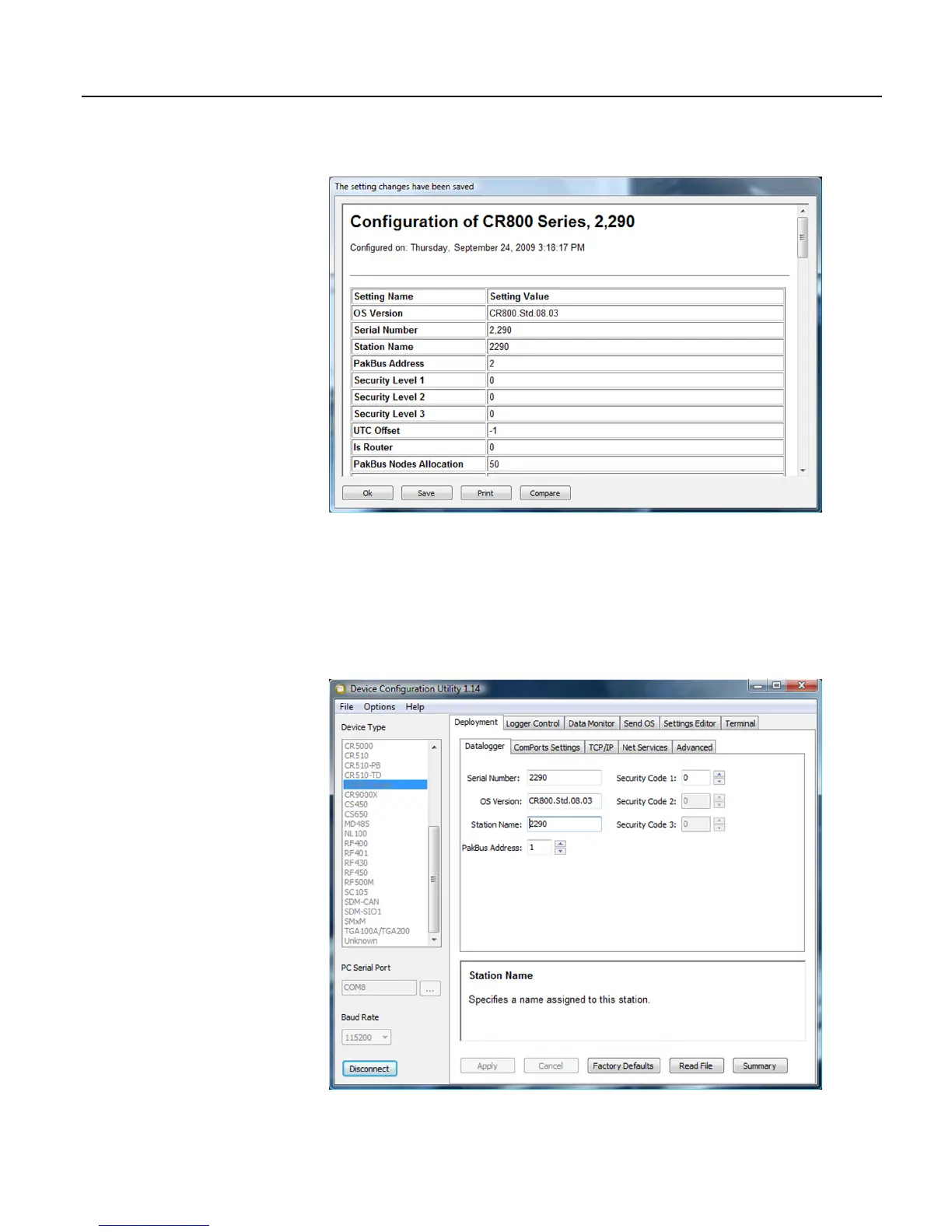

Figure 38: Summary of CR800 configuratio
n
7.6.3.1.1
Deployment Tab
Illustrated in figure
DevConfig Depl
oyment Tab
(p.
98),
the
Deployment
tab allows
the user to configure the datalogg
er prior to deploying it.
Deployment
tab settings
can also be accessed through t
he
Setting E
ditor
tab a
nd the
Status
table.
Figure 39: DevConfig Deployment tab
97
99
