Section 8. Operation
386
8.8.1.1
Real-Time Tables and Graphs

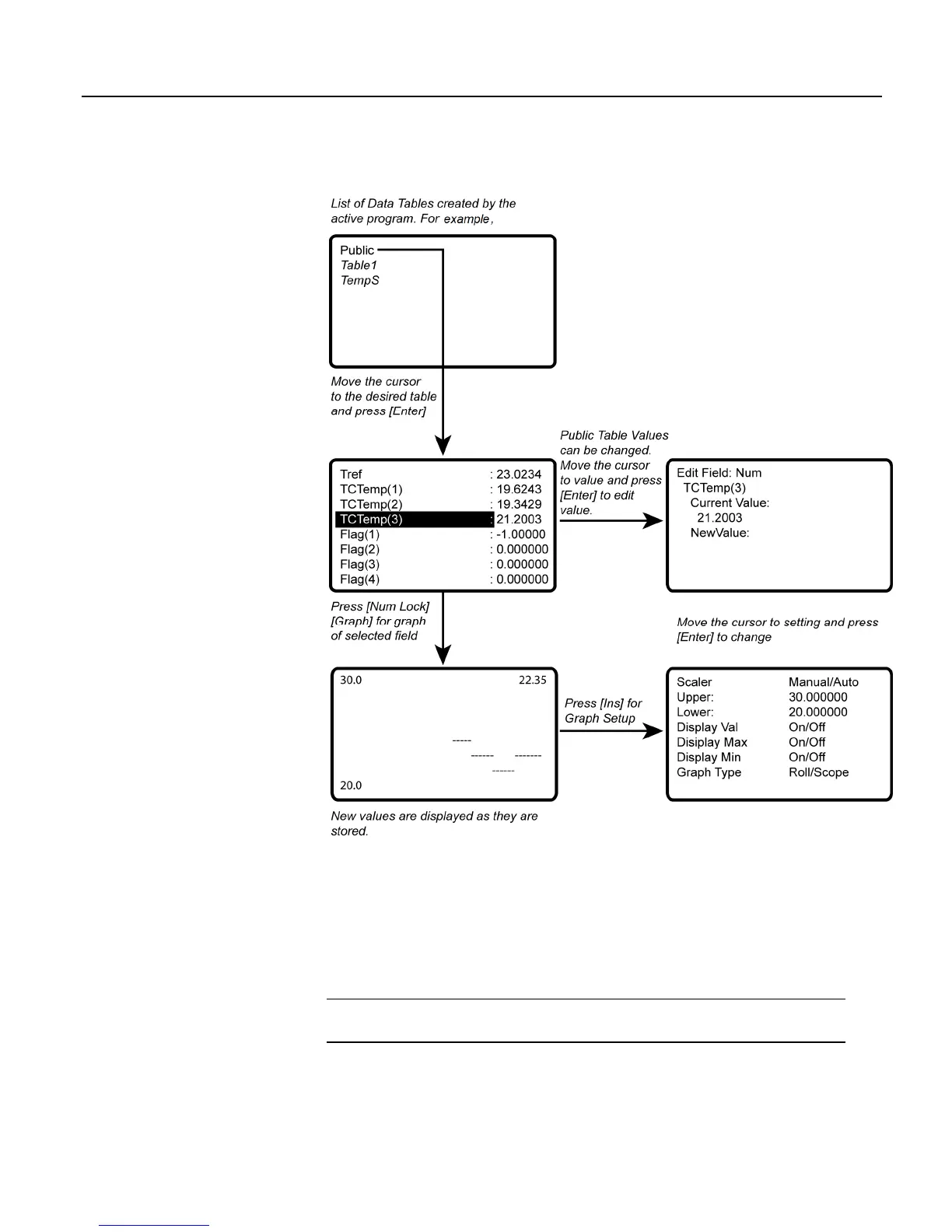

Figure 115: Real-time tables an
d graphs
8.8.1.2
Real-Time Custom
The external keyboard / display can be c
o
nfigured with a user-defined, real-tim
e
display. The CR800 will keep the setup if the same program is running, or until it
is changed
by the user
.
Read More!
Custom
menus can al
so be pr
ogrammed. See
Custom Menus
(p.
194)
for more infor
mation.
