Section 4. Quickstart Tutorial
51
18. Close this window by clicking on X in the upper right corner.
4.2.5 Send Program and Collect Data
PC200W Support Software Objectives:
This portion of the tutorial will use PC200W to send the program to the CR800,
collect data from the CR800, and store the data on the PC.
4.2.5.1 Procedure: (PC200W Step 1)
1. From the PC200W Clock/Program tab, click on Connect button to establish
communications with the CR800. When communications have been
established, the button will change to Disconnect.

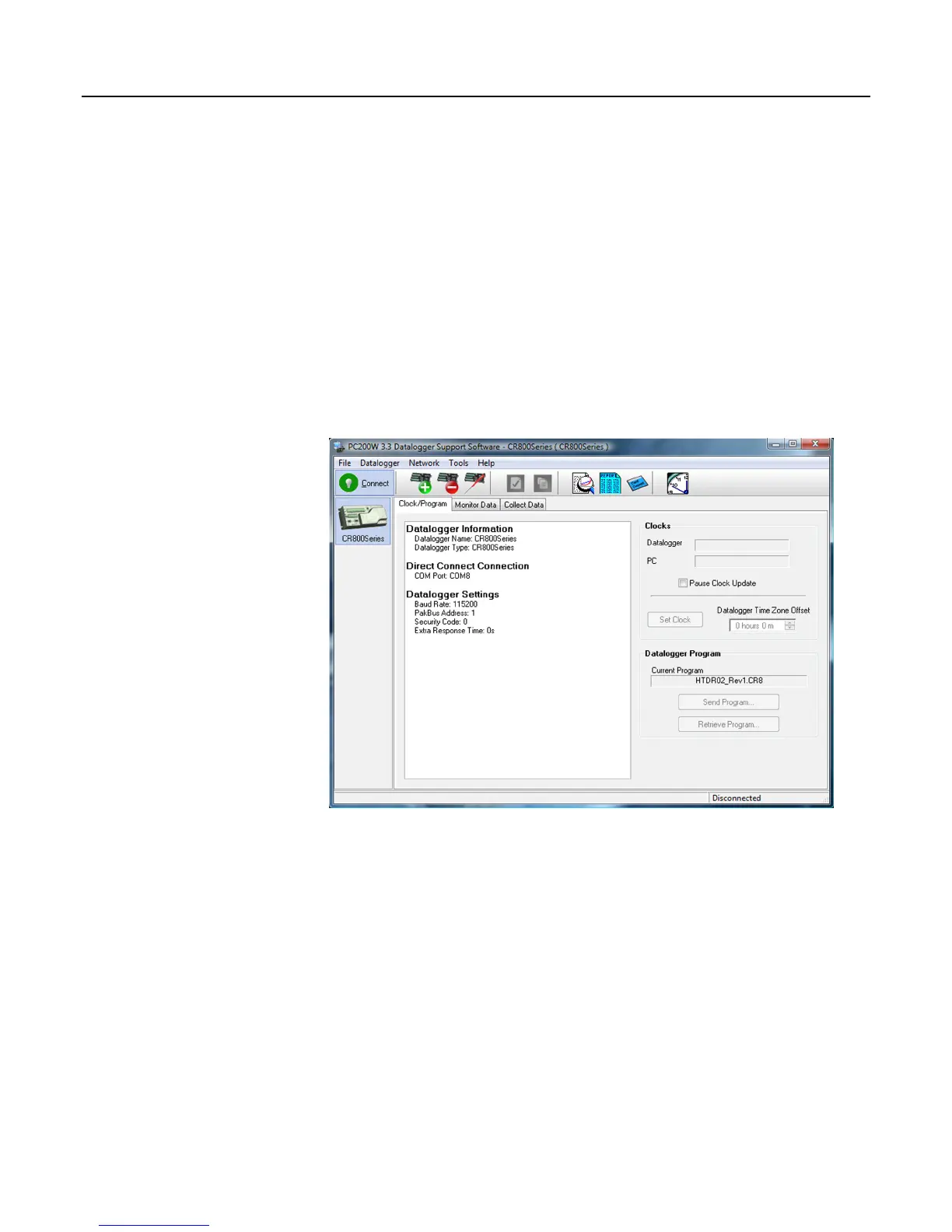

Figure 19: PC200W Connect button
4.2.5.2 Procedure: (PC200W Steps 2 to 4)
2. Click Set Clock to synchronize the CR800 clock with the computer clock.
3. Click Send Program.... A warning will appear that data on the datalogger
will be erased. Click Yes. A dialog box will open. Browse to the
C:\CampbellSci\SCWin folder, select the QuickStart.cr8 file. Click Open. A
status bar will appear while the program is sent to the CR800 followed by a
confirmation that the transfer was successful. Click OK to close the
confirmation.
4. After sending a program to the CR800, a good practice is to monitor the
measurements to ensure they are reasonable. Select the Monitor Data tab.
The window now displays data found in the Public table coming from the
