Section 8. Operation
391
8.8.3.1
File: Edit
The
CRBasic Editor
is recommend
ed for writing and editing datalogger programs.
When maki
ng minor c
hanges i
n the field wi
th the external
keyboard /
display
,
restart the program to
activate the changes.

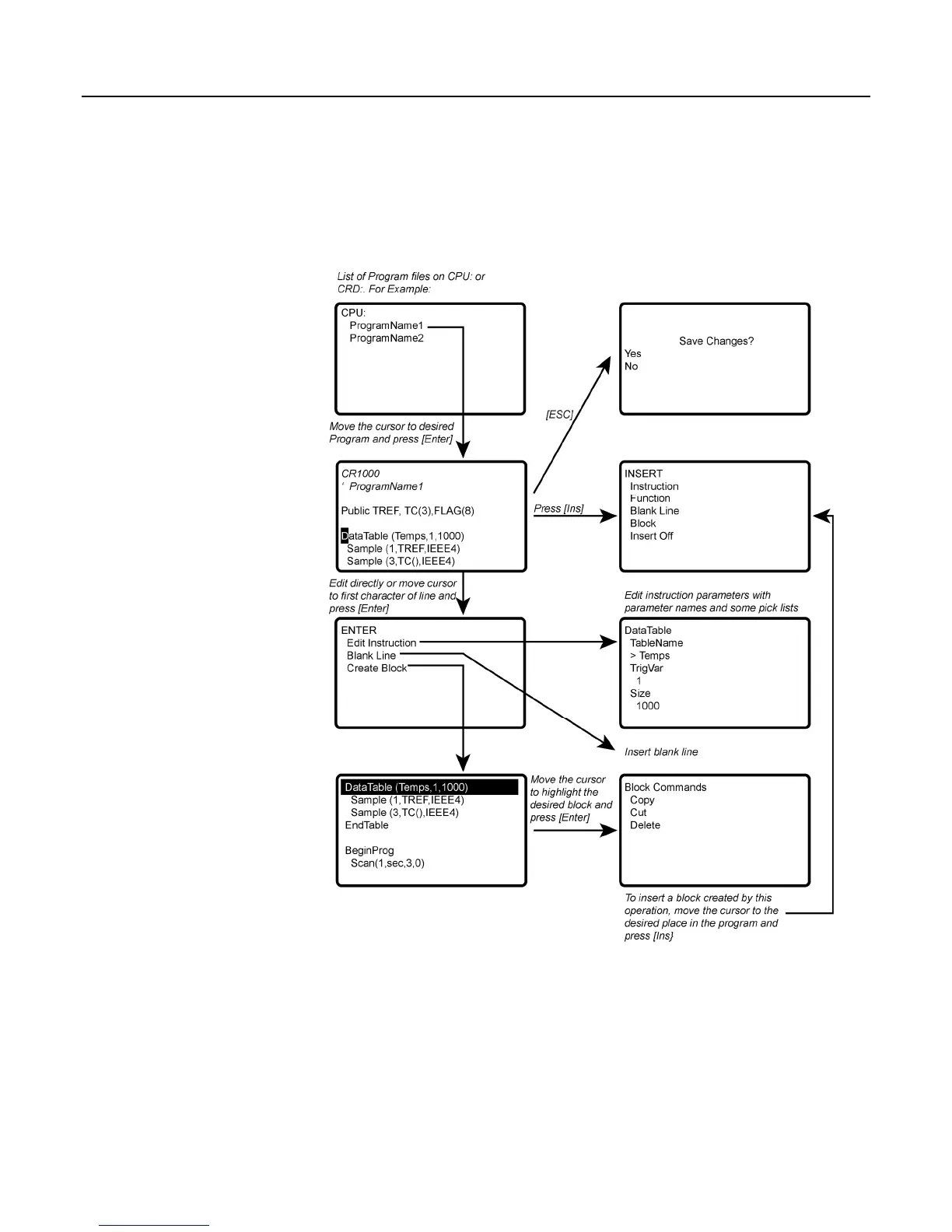

Figure 120: File: edit
