Section 4. Quickstart Tutorial
34
modems, radios, satellite transceivers, and TCP/IP network modems are available
for the m
ost dema
nding appli
cations.

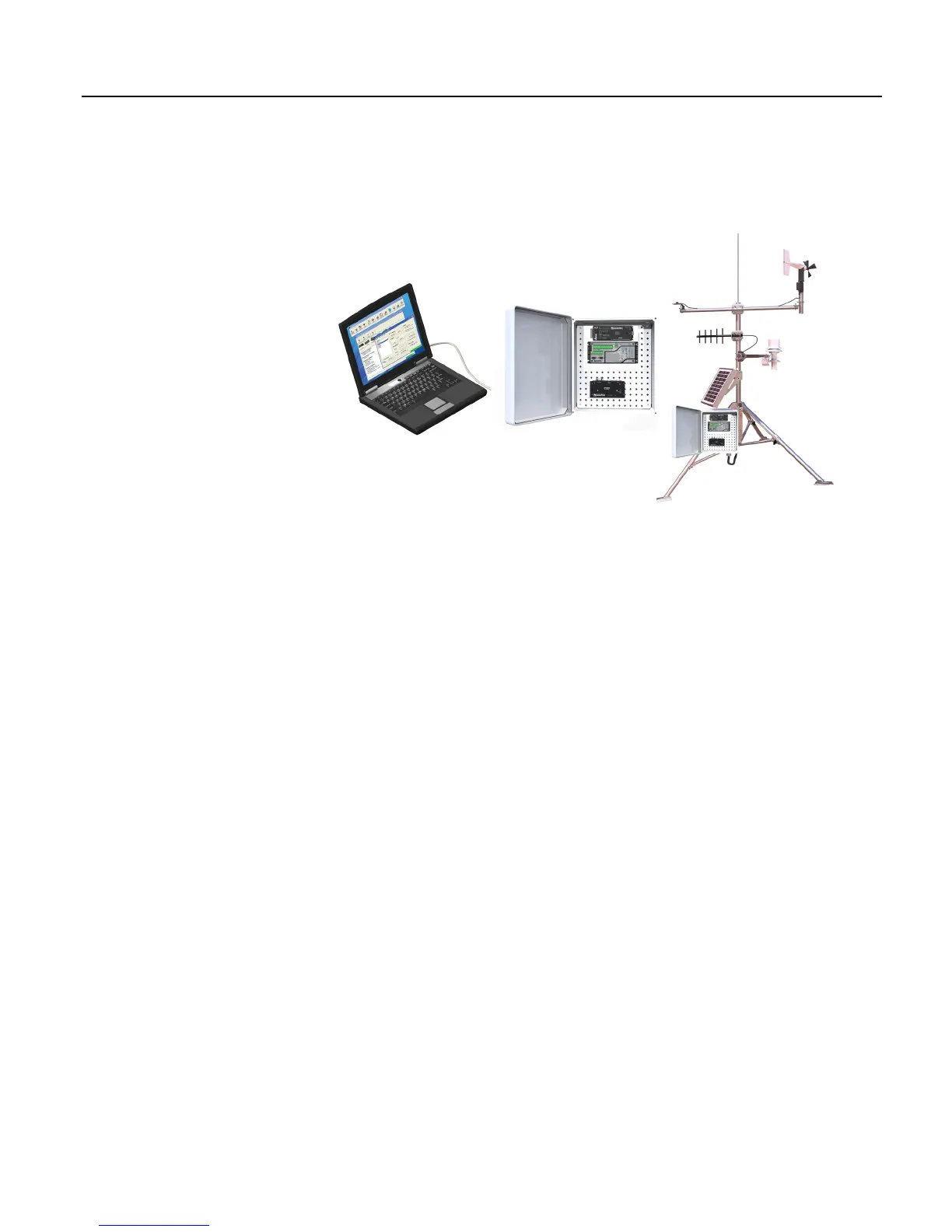

Figure 1: Data-acquisiti
on system components
4.1.2
CR800 Module and Power Supply
4.1.2.1
Wiring Panel
As shown i
n figure
CR
800 Wiri
ng Panel
(p.
35),
t
he wiring
panel provi
des term
inals
for connectin
g sensors,
power and com
municati
ons devices
. Internal s
urge
protection is incorpor
ated with the input channels.
