Section 8. Operation
344


Table 82. PakBus-LAN Example Datalogger-Communications Settings
Software→ Device Configuration Utility (DevConfig)
Tab→
Deployment
Sub-Tab→
Datalogger ComPort Settings
Advanced
Setting→
PakBus Adr COM1 COM2
Is Router
Sub-Setting→
Baud Rate
Neighbors
1
Baud Rate
Neighbors
1
Datalogger ↓ Begin: End: Begin: End:
CR800_1 1 115.2K Fixed 2 2 115.2K Fixed 3 4
Yes
CR800_2 2 115.2K Fixed 1 1 Disabled
No
CR800_3 3 115.2K Fixed 1 1 115.2K Fixed 4 4
Yes
CR800_4 4 115.2K Fixed 3 3 Disabled
No
1
Setup can be simplified by setting all neighbor lists to Begin: 1 End: 4.

8.5.6.3 LoggerNet Setup

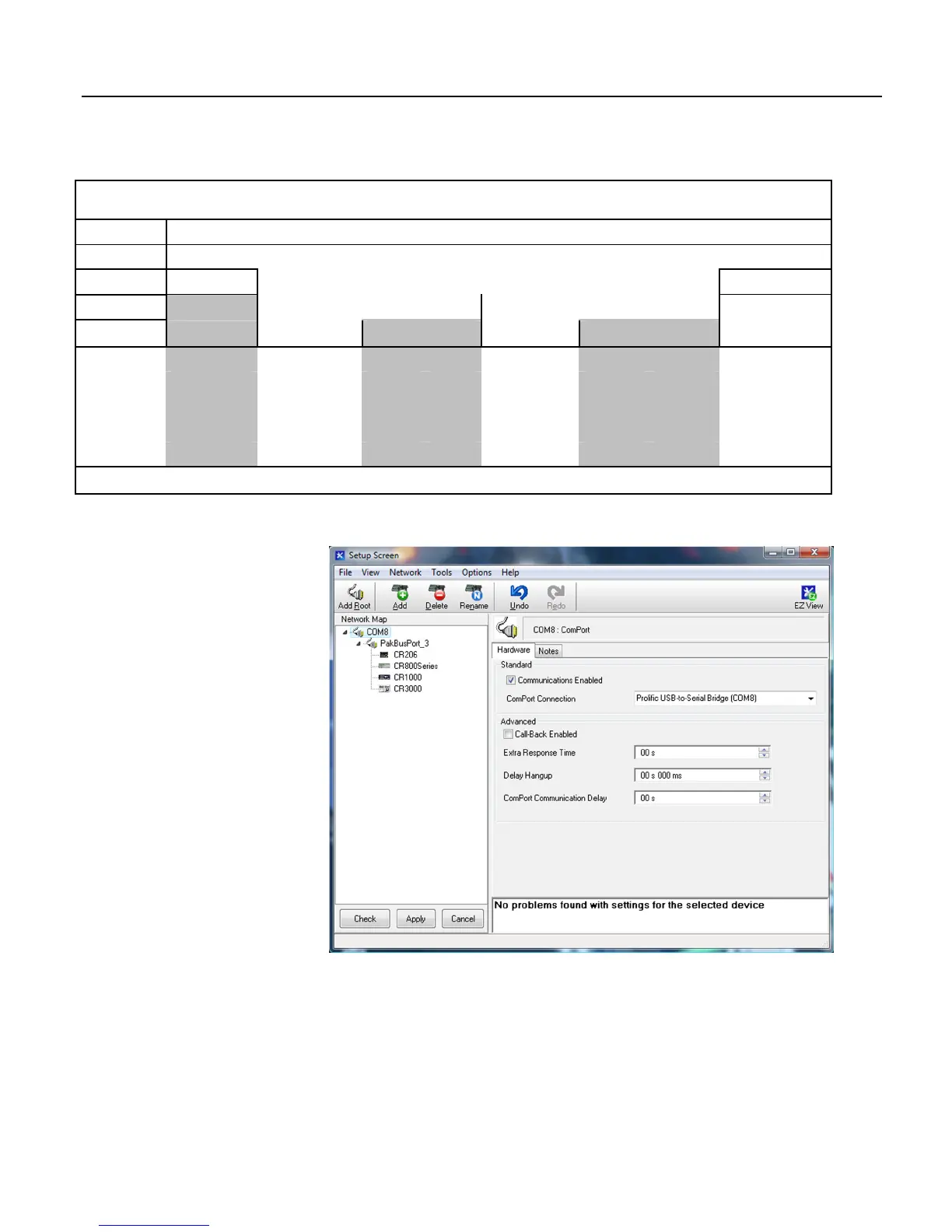

Figure 110: LoggerNet Network-Map Setup: COM port
In LoggerNet Setup, click Add Root and add a ComPort. Then Add a
PakBusPort, and (4) CR800 dataloggers to the device map as shown in figure
LoggerNet Device-Map Setup
(p. 344).
