Campbell CR850 - Analog Control; Output Devices; Figure 101: Relay Driver Circuit with Relay; Figure 102: Power Switching Without Relay

Section 8. Operation
314



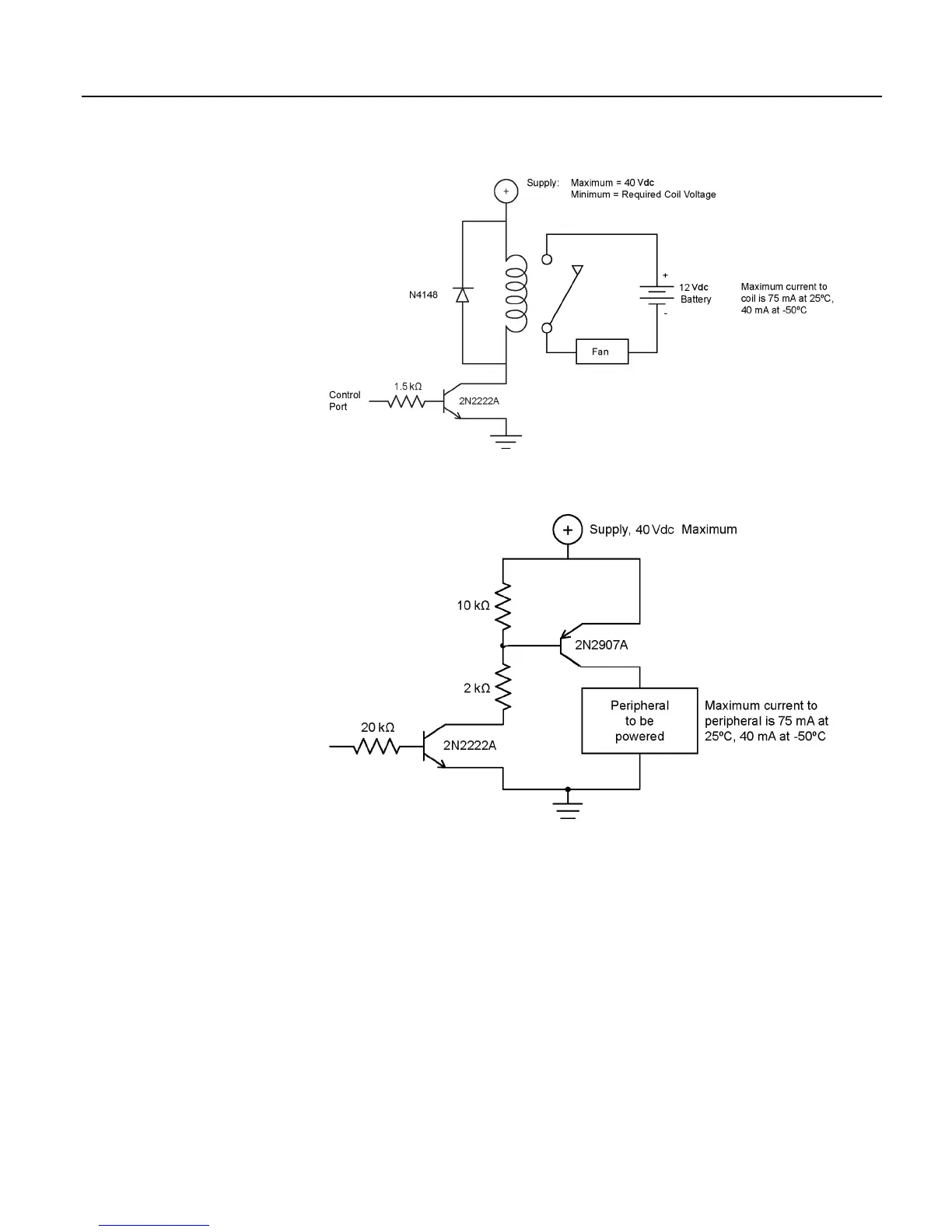

Figure 101: Relay driver circuit with relay
Figure 102: Power switching without relay
8.2.5 Analog Control / Output Devices
The CR800 can scale measured or processed values and transfer these values in
digital form to an analog output device. The analog output device performs a
digital-to-analog conversion to output an analog voltage or current. The output
level is maintained until updated by the CR800. Refer to the appendix
Continuous Analog Output (CAO) Modules
(p. 541) for information concerning
available continuous analog output modules.
