Therecordedamplitudeforthisexampleshouldbeabout1/3ofthe
input‐signalamplitude.Aprogramwaswrittenwithtwostored
variables:Accel2andAccel2RA.Therawmeasurementwasstoredin
Accel2,whileAccel2RAwastheresultofperformingarunningaverage
ontheAccel2variable.Bothvalueswerestoredatarateof50
0Hz.
FigureRunning‐AverageSignalAttenuation
(p.267)showthetwovalues
plottedinasinglegraphtoillustratetheattenuation(therunning‐
averagevaluehastheloweramplitude).
Theresultantdelay(delayintime)=(Scanrate)(N‐1)/2=2ms(10‐1)/2=
9ms.Thisisabout1/3oftheinput‐signalperiod.

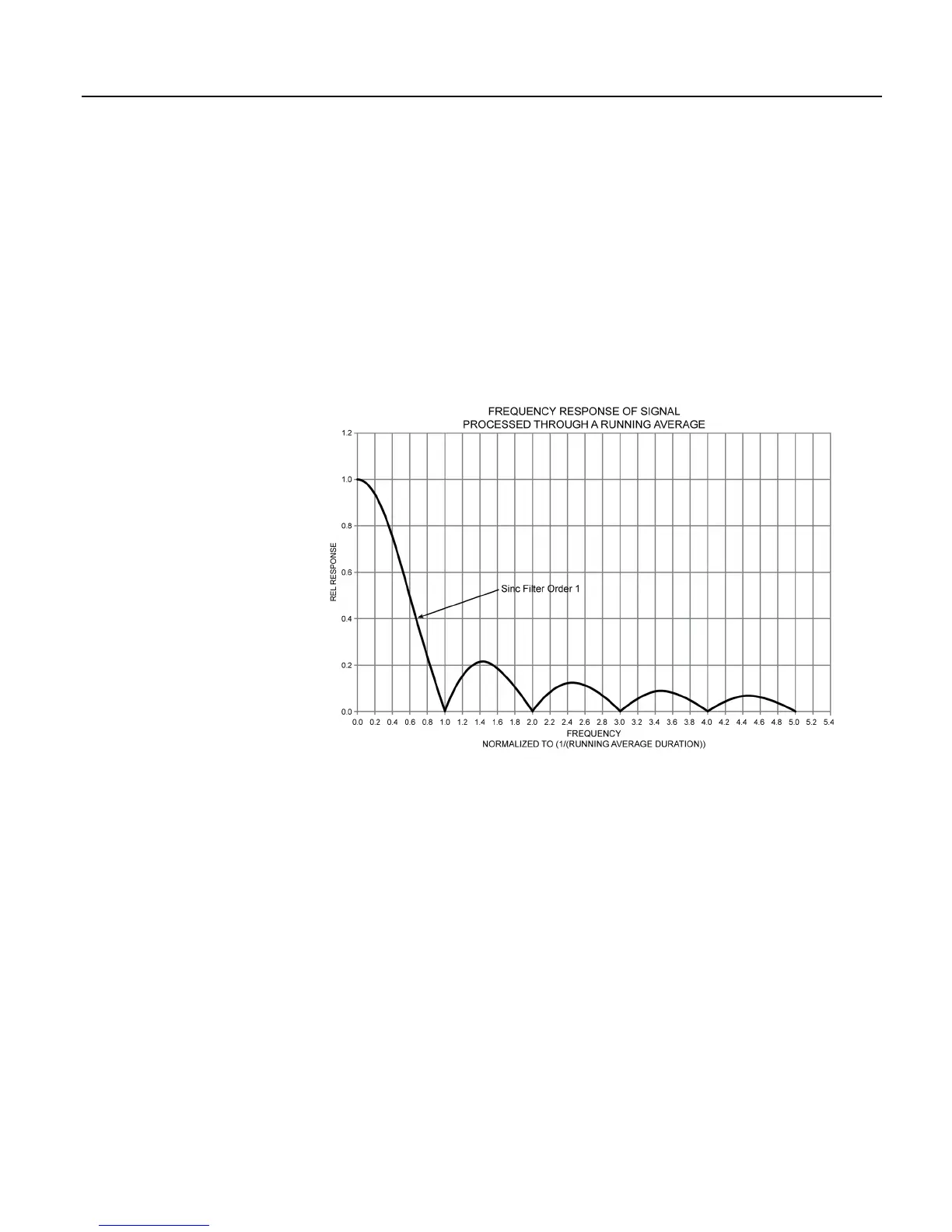

Figure 83: Running-average frequency response
