Section 4. Quickstart Tutorial
44
6. After confirming the correct polarity on the wire connections, insert the green
power connector into its receptacle on the CR800.
7. Connect the RS-232 cable between the RS-232 port on the CR800 and the RS-
232 port on the PC (or to the USB-to-RS-232 cable).
8. Move the on/off switch on the PS100 to the On position.

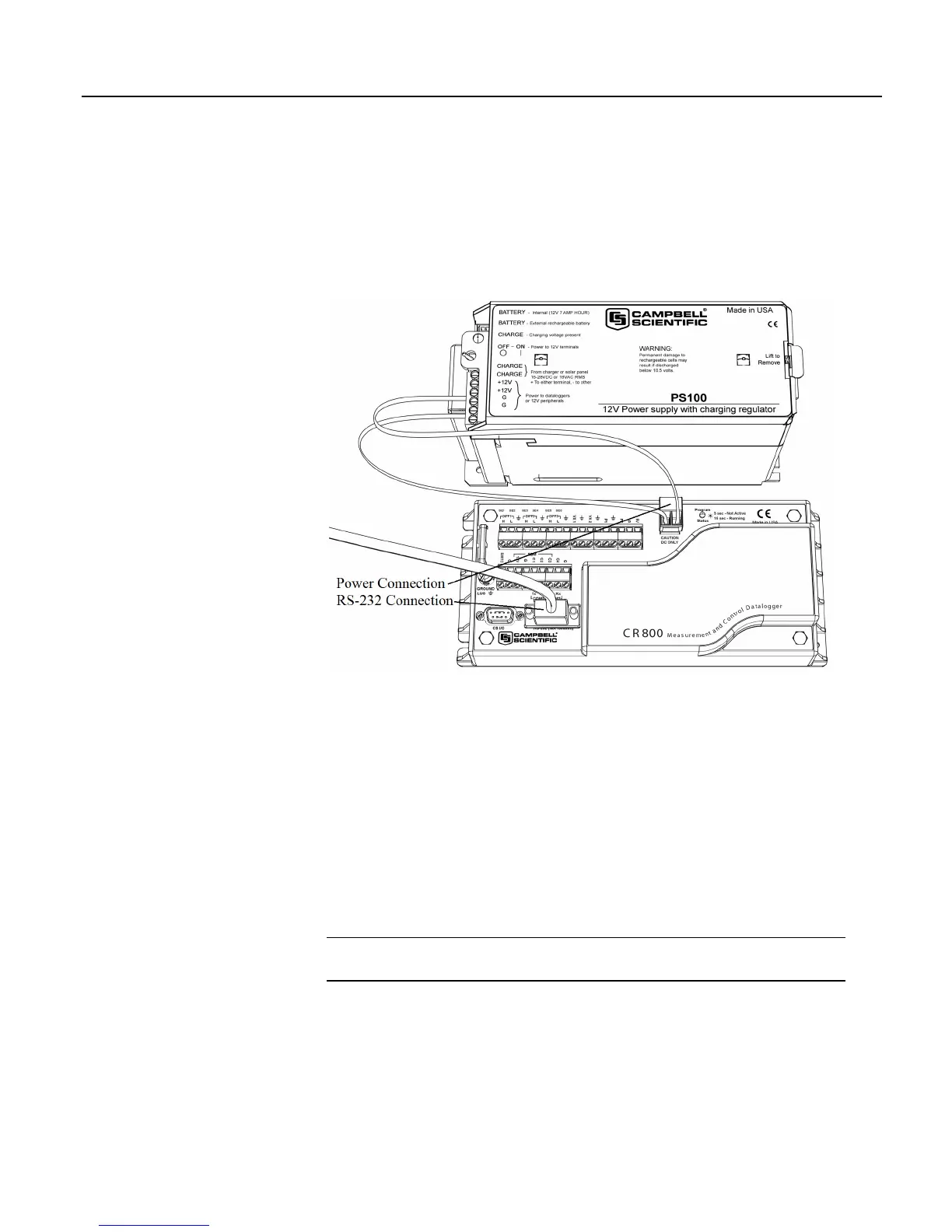

Figure 12: Power and RS-232 connections
4.2.3 PC200W Software Setup
1. Install the PC200W software onto a PC. Follow on-screen prompts during the
installation process. Use the default program and destination folders.
2. Open the PC200W software (figure PC200W Main Window
(p. 45) ). When the
software is first run, the EZSetup Wizard will run automatically in a new
window. This will configure the software to communicate with the CR800.
Table PC200W EZSetup Wizard Example Selections
(p. 45) indicates what
information needs to be entered on each screen. Click Next at the bottom of
the screen to advance to the next screen.
