Section 7. Installation
229
Variable
aliasing
(p.
124)
can be employed in the CRBasic program to make the
data more understandable.

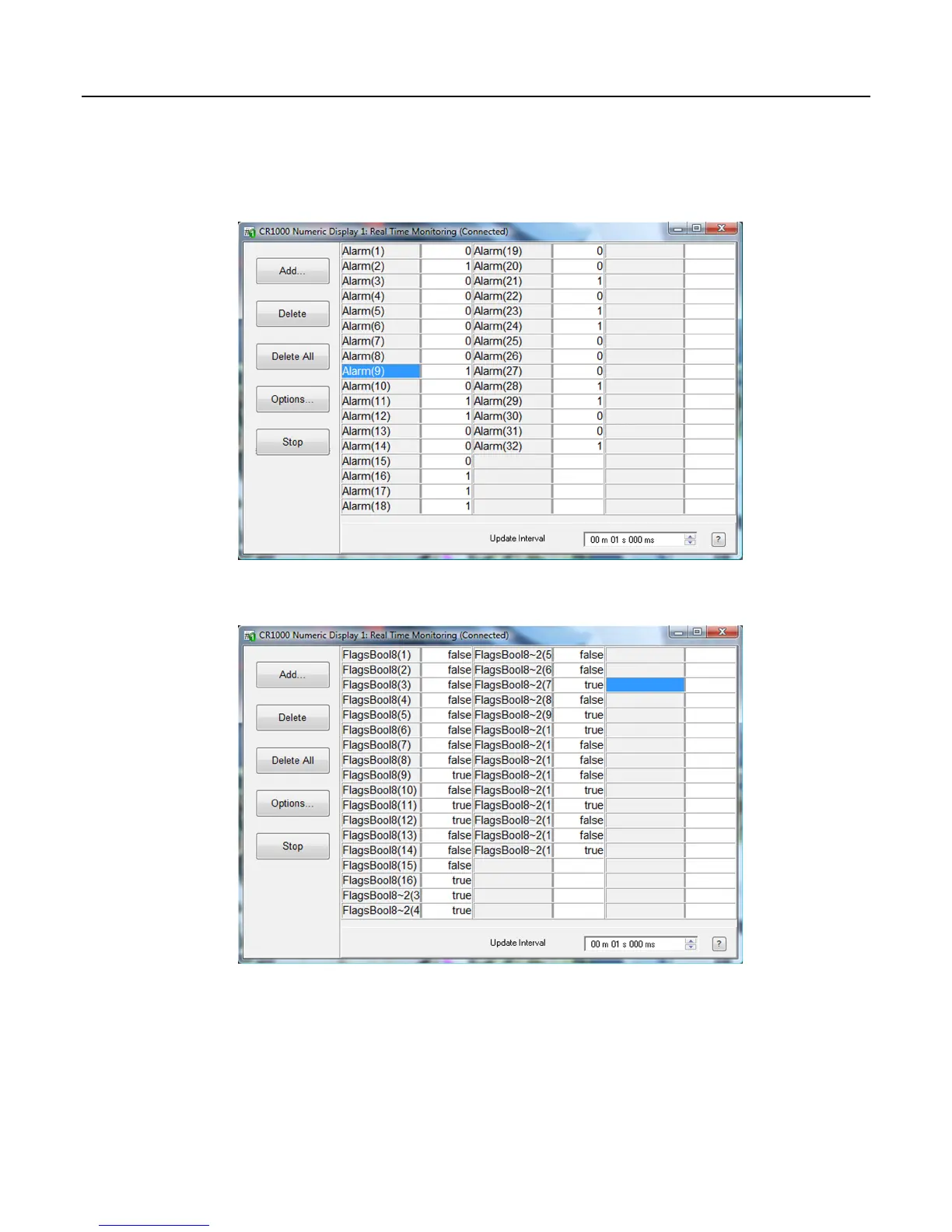

Figure 76: Alarms toggled in bit-shift example
Figure 77: Bool8 data from bit-shift example (num
eric monitor)
228
230
