10 Chapter 2 CS 7600 System Overview
Scan & Go Generation 2 (Models Released from June 2012)
A second generation of Scan & Go device is available from June 2012. The following improvements have
been made to the second generation Scan & Go device:
• Faster scanning - Approximately 1/4 sec instead of 1 sec
• No battery - Therefore no need for charging
• No on off switch - Turns on automatically when the USB is connected

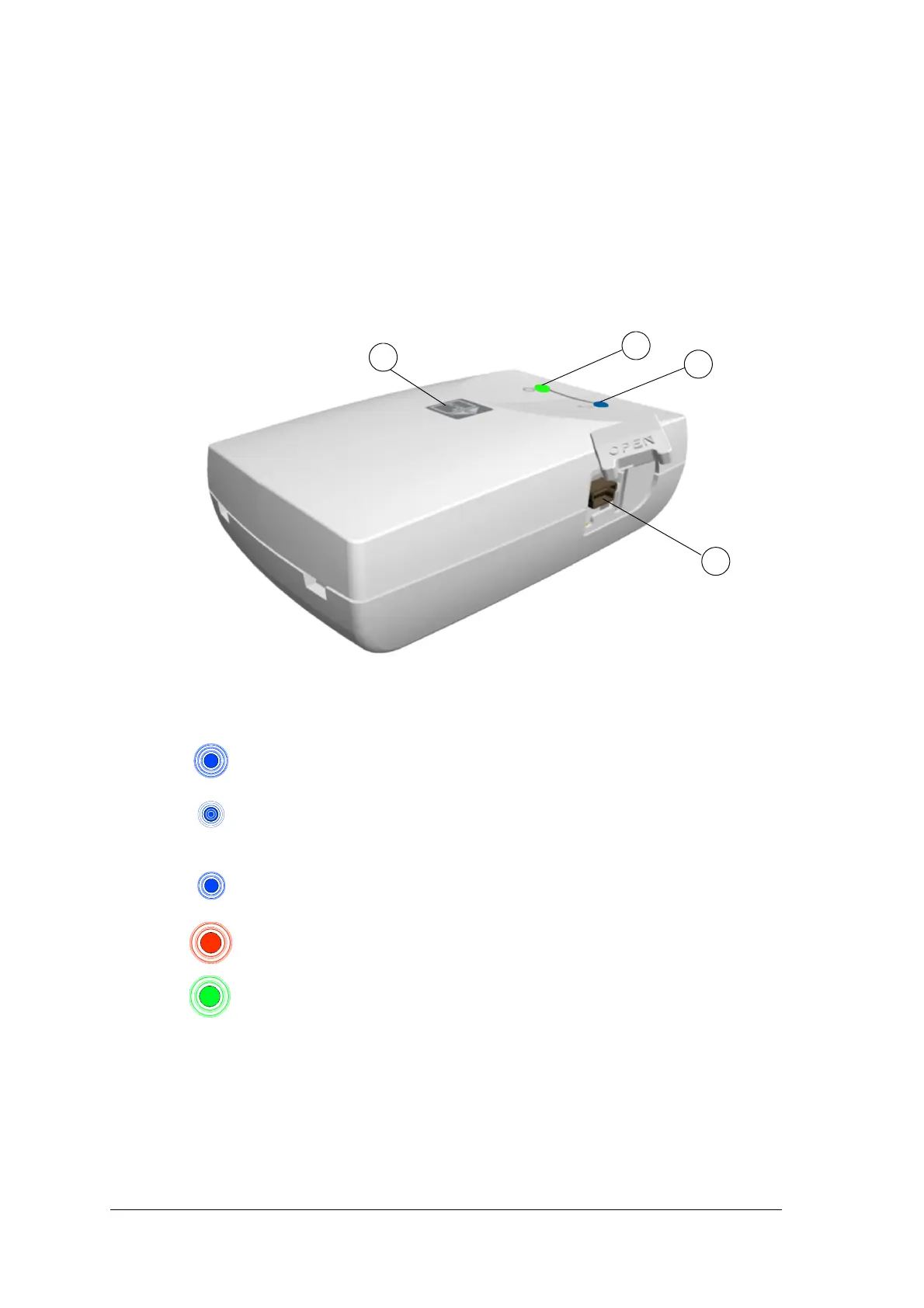

Figure 6 Scan & Go device, Generation 2 (after June 2012)
1 USB 2.0 port
2 On/Off/Recording LED status indicator (blue)
Power Up: One Flash & Beep (Internal FW)
Beacon: Flashes blue every few seconds when the image Acquisition interface is open
(Not during Tagging)
Tagging OK: One flash (long) & 1 bleep (long)
Tagging Fail: One Red flash (long) & 1 bleep (long)
3
Connected to USB: LED status indicator (green)
4 Recording surface for imaging plate
