42 Chapter 4 Scanner Interface Overview
Working with the Scanner
The following procedures are explained here:
• Turning on the Scanner,See “Turning on the Scanner” on page 42
• Image Acquisition, See “Image Acquisition” on page 43
• Scanner Info, See “Scanner Info” on page 43
• Erasing the Imaging Plates, See “Erasing the Imaging Plates” on page 44
• Scanner Settings, See “Scanner Settings” on page 45
• Brightness Control, See “Brightness Control” on page 45
• IP Setup, See “IP Setup” on page 46
• Rollers Cleaning, See “Cleaning the Scanner Rollers” on page 67
• About Information, See “Scanner Info” on page 43
• Viewer, See “Viewer” on page 47
• Pairing, creates a direct PC to scanner link for chair-side use, See “Creating a Peer to Peer
Connection” on page 34 and See “Disconnecting a Peer to Peer Connection” on page 48
• Clearing Scanner Memory, See “Clearing Scanner Memory” on page 49
Turning on the Scanner

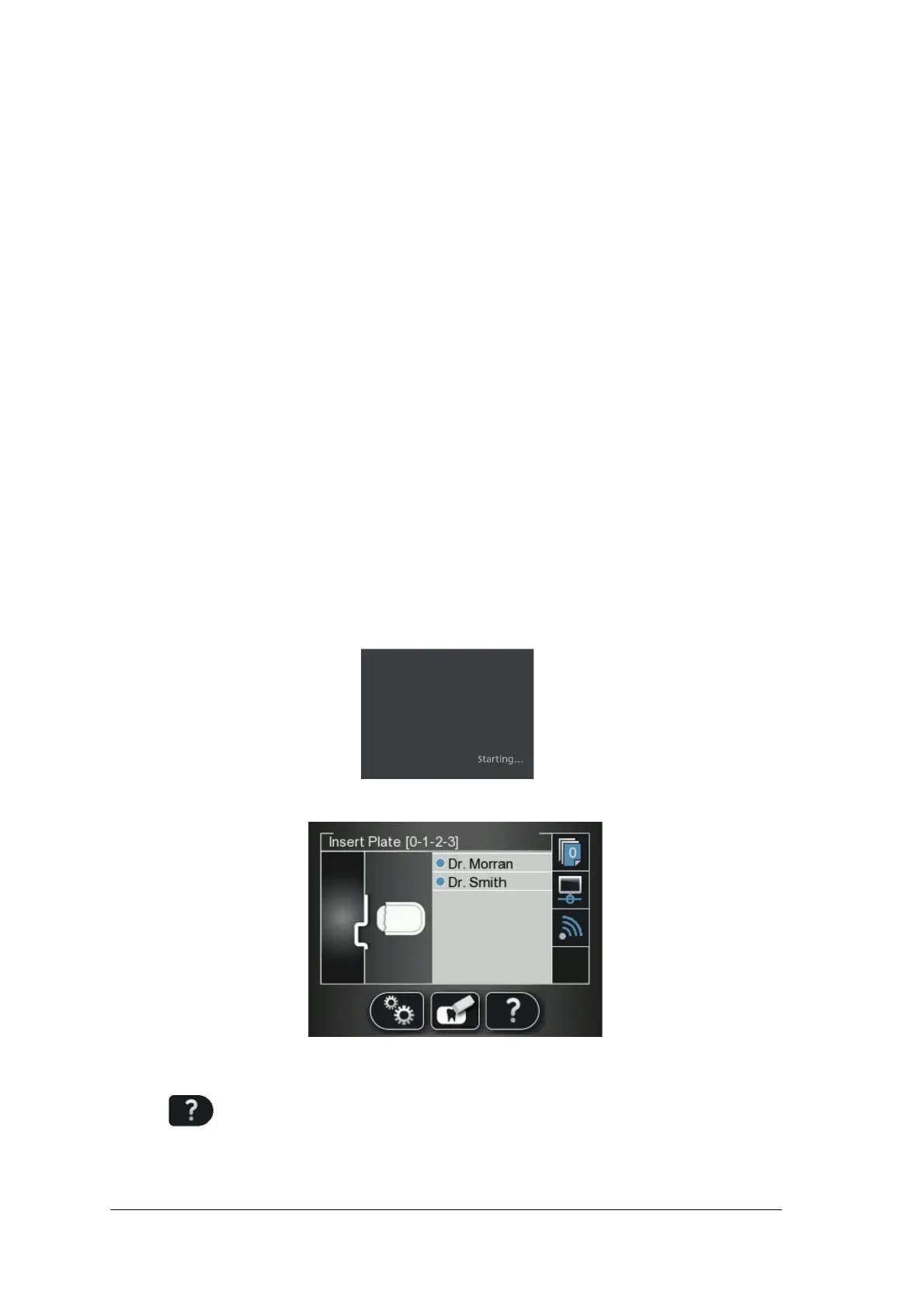

After turning on the scanner, you are presented with the Starting screen.
Then the Insert Plate screen opens.
The following three functions are presented:
• Scanner Info, See “Scanner Info” on page 43
