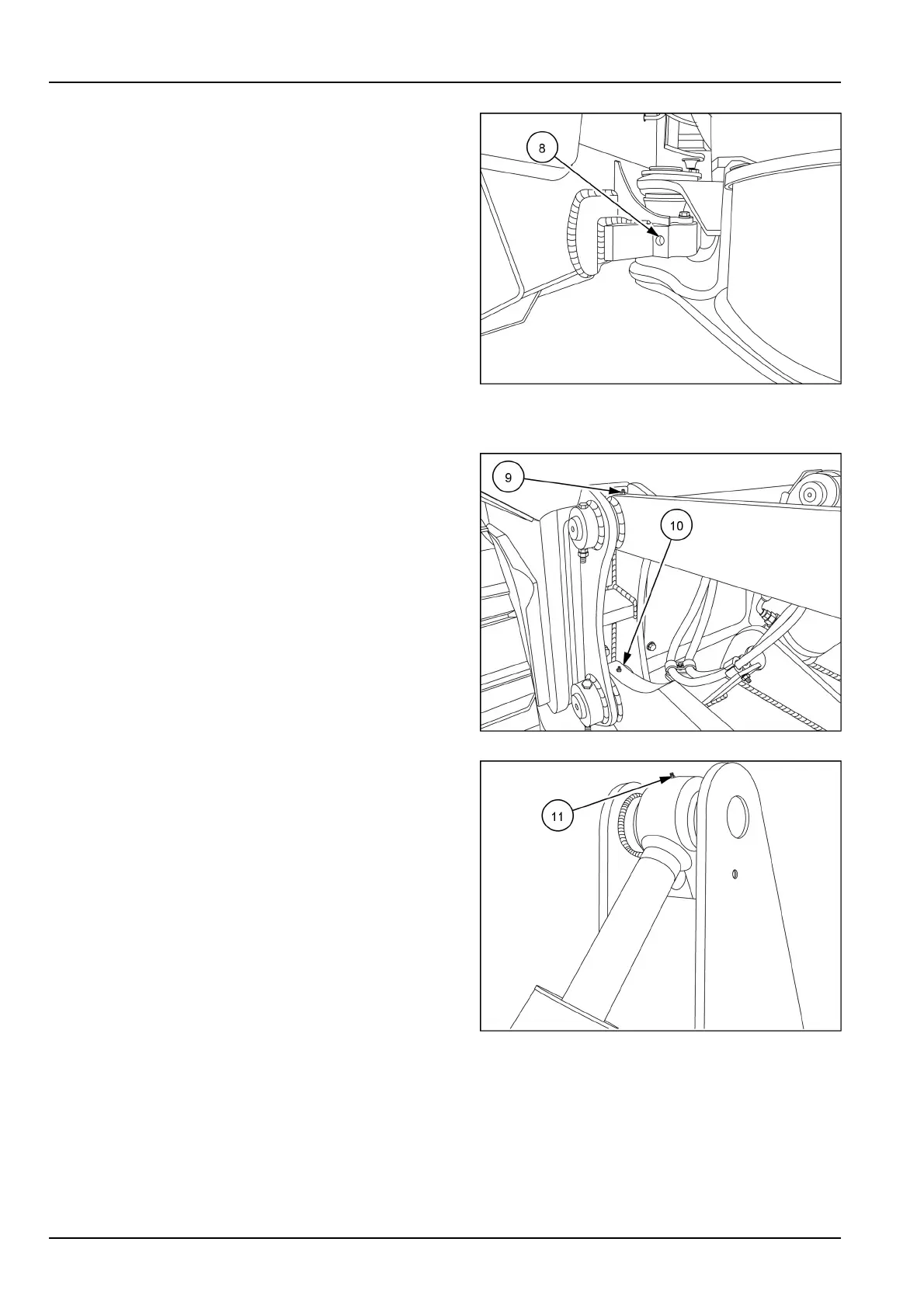

Bladepivot(8)

RAIL12DOZ0363AA8

Ripper

Tiltpivot(9)—oneeachside

Tiltpivot(10)—oneeachside

RAIL12DOZ0366AA9

Ripperliftcylinders(11)—bothends

RAIL12DOZ0369AA10

NOTICE:Insevereconditions,suchasimmersioninwater,itmaybenecessarytogreasemorefrequently.
