7-MAINTENANCE

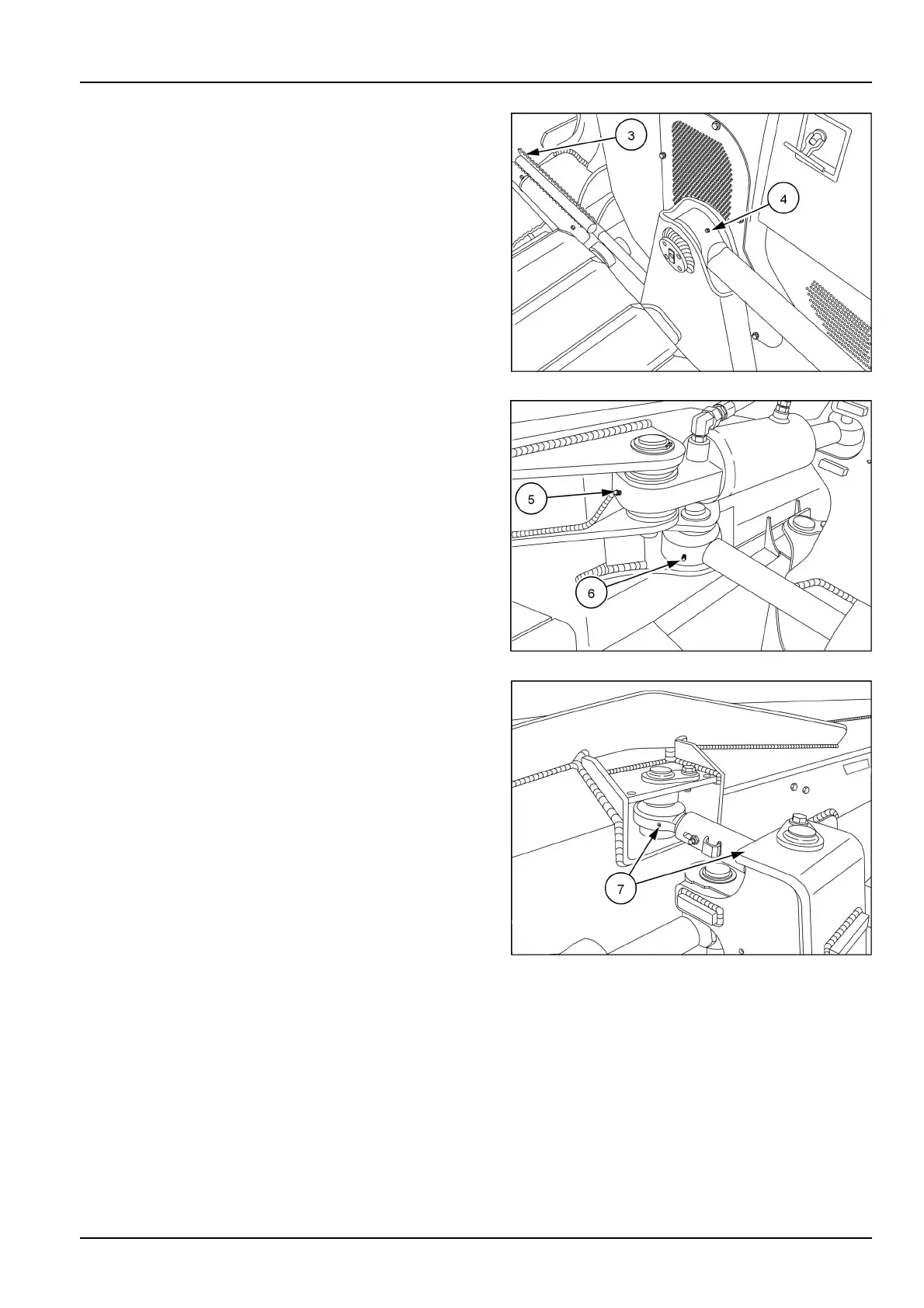

Theanglecylinderbaseend(3)—oneeachside.

Theliftcylinderrodend(4)—oneeachside.

RAIL12DOZ0360AA5

Tiltcylinder(bothends)(5)

Anglecylinderrodend(6)—oneeachside

RAIL12DOZ0359AA6

Pitchlink(bothends)(7)

RAIL13DOZ1609AA7

7-37
